Yale Hoists Electrical 3m 500 kg Hoist, CPV 5-4, Лебедка

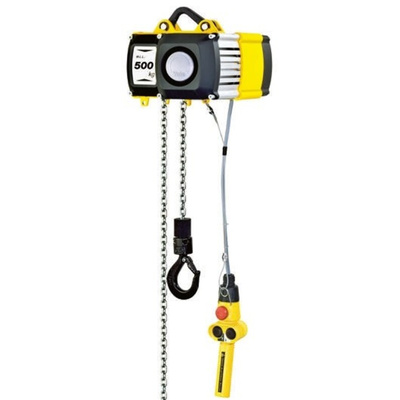

Yale Hoists Electric Chain Hoist

The Yale Hoists electric chain hoist can lift loads up to 500kg. Its robust construction makes it a versatile tool for professional applications. The integrated limit switch for the highest and lowest hook position considerably extends the working life span of the slip clutch, 0.37kw motor, and gearbox. The electromagnetic spring pressure brake holds the load safely despite power failure and the externally adjustable slip clutch guarantees a permanent connection between the load and the brake.
Warning:
Not for passenger elevation.

Features and Benefits

Lift height is 3m
Number of chan fall is 2
42V low voltage control pendant with emergency stop button
Grade 80 zinc plated chain
Hook suspension
Integral upper and lower electric limits
Lifetime lubricated gearbox
Motor lifting speed is 4m/minute
Motor operating voltage is 400V
Thermal overload protection as standard for the whole range. Optimised housing for improved cooling
Duty cycle is 50% ED for single speed
Suspension lug for compact dimensions and easy integration in closed-eye constructions

Applications

Industries
Services
Trade

Certifications

EN ISO9001:2008
IP55 rated (motor)
IP65 rated (control pendant)
2006/42/EC
98/37/EC
2006/95/EC
EN6024-1:2006

CPV Electric Hoist Data Sheet
