Sauter HBA 100-0 Durometer

6850937
Номер производителя: HBA 100-0 Производитель: Sauter
Цена за шт.
18161.60 руб. *

Срок поставки: 4-6 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

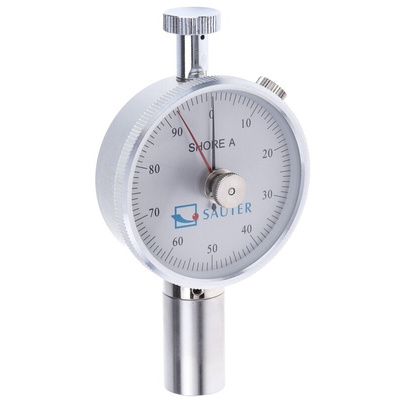

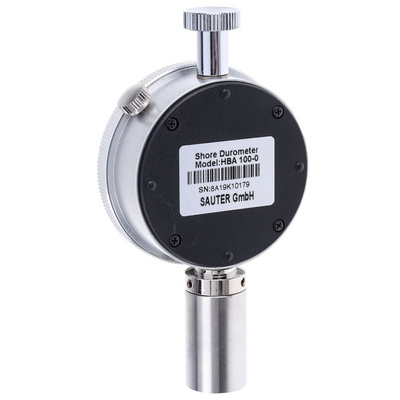

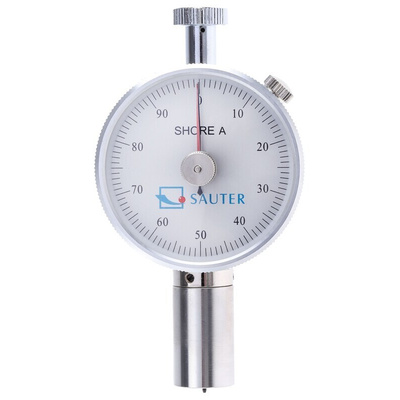

Shore Hardness Tester, Analogue

HB Series hardness tester with slave pointer for measuring penetration depth
Shore A: rubber, elastomer, neoprene rubber, silicon rubber, vinyl, soft plastics, felt, natural leather and similar materials
Shore C/0: foam, sponge
Shore D: plastics, synthetic resin, resopal, epoxide, perspex etc.
Max. mode for recording peak values
Point mode shows stable measurement value
Dimensions: L x W x H: 115 x 60 x 25 mm
Weight: 160 g

Supplied with

High-quality wooden box

Parallels, Surface Finish & Hardness

Surface Finish

Any machined component has a surface geometry which consists of three basic elements:

Form or Curvature - Whether the surface has irregular bumps or dimensional changes
Waviness - Whether the surface has regular repetitive ripples or patterns (e.g. milling patterns)
Roughness - The shapes or irregularities that are smaller than, and form part of the waviness pattern (e.g. material micro-structure)

Waviness and roughness are traditionally the most difficult elements to measure when comparing surface finish, however, they have a radical effect on the performance of the finished component. Variations will cause aesthetic appearance changes, component wear variations, oil retention variation etc. Many manufacturers therefore specify a range of roughness values which their components should be manufactured to, often expressed as: Ra, Rq (RMS), RzDIN, Ry, Sm,mm.

Техническая спецификация
pdfDatasheet

Тип тестера:
Durometer
