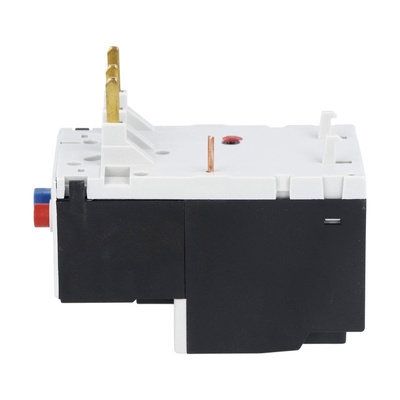

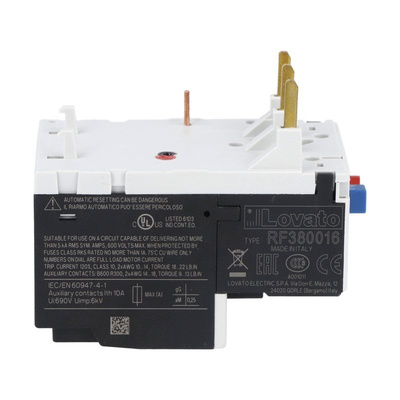

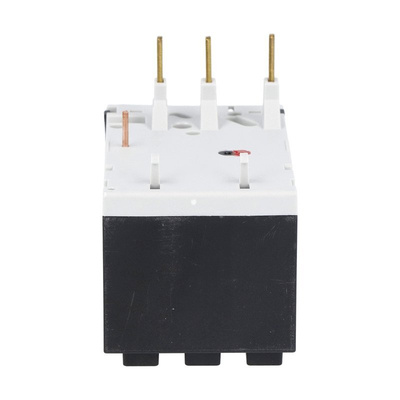

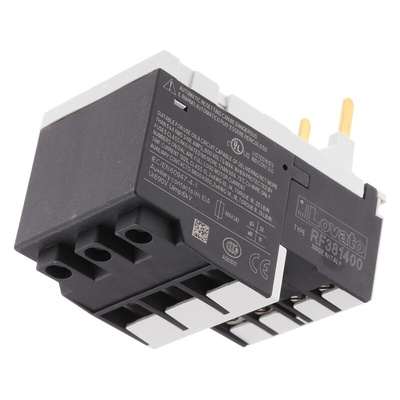

RF381400, Lovato RF38 Thermal Overload Relay, 9 → 14 A F.L.C, 14 A Contact Rating, 3P, Реле

3-Pole Thermal Overload Relays RF38

Manual or automatic re-settings available
Direct mounting on BF09 - BF38 contactors
Rated insulation voltage Ui: 690V
Frequency limit 0-400Hz
Operating temperature -25 to +60°C
Can be mounted on contactor or seperately
Test button - trip indicator

Note

For use with BF series contactors only.

Lovato RF38 Series Thermal Overload Relay, 14A Contact Current, +60 °C Maximum Operating Temperature - RF381400

The Lovato thermal overload relay, with a 14 Amp capacity and a 3P Pole Configuration, provides reliable protection for motors in various applications. This high-traffic relay ensures safe operation by monitoring the motor's FLC rating, operating temperature range, and offers automatic or manual reset options. With the ability to reset based on set parametres, the relay is a trusted solution for maintaining optimal motor performance.

Features & Benefits

• Monitors motor FLC rating to prevent overload conditions
• Wide operating temperature range of -25°C to +60°C ensures functionality in various environments
• 3P Pole Configuration for efficient power distribution and reliable performance
• Automatic and manual reset options for flexibility in resetting procedures

Applications

• Ideal for use in industrial automation applications
• Suitable for electrical and mechanical industries for motor protection
• Used in electronics to ensure motor reliability and safety

Can it monitor the FLC rating effectively to prevent motor overload?

Yes, the Lovato thermal overload relay is designed to monitor the motor's FLC rating effectively, ensuring protection against overload conditions.

Will it operate within a wide temperature range?

The relay is capable of operating in temperatures ranging from -25°C to +60°C, making it suitable for various environments and applications.

Is the 3P Pole Configuration reliable for efficient power distribution?

Yes, the 3P Pole Configuration of the relay ensures efficient power distribution and reliable performance for motors.

Can it automatically reset after a fault condition is detected?

The Lovato relay offers both automatic and manual reset options, allowing for flexibility in resetting procedures based on specific needs.

Lovato Orange Contactors, Control Relays and Accessories

Motor Protection Relays Catalogue pages

Heat dissapation Data Sheet

Catalogue - Motor Protection Relays

Instruction Sheet - RF38 Series
