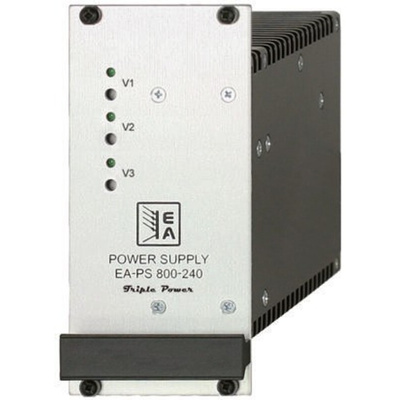

EA Elektro-Automatik Switching Power Supply, EA-PS 805-12-12-240 Triple, 5 V dc, ±12 V dc, 2.5A, 225W, Triple Output,, Источник питания

58 - 240W, Single/Multi Output, EA-PS 800 Series

These 19" plug-in power supplies in European format are for use in control, test and measurement, telecommunication and datacom applications. The active PFC with true wide-input range, fully independent adjustment and natural cooling suitable for ambient temperatures of up to 70°C make them ideal where reliability and performance are required.

Europe-format sizes, DIN 41494 compliant
Wide input voltage range with active PFC
Output voltage adjustable by trimmer
Up to 92% efficiency by combining fly-back converter and synchronous rectifier principle
No minimum load required and no cross regulation effects
Remote sense, over voltage protection, over temperature protection, inhibit, front panel LEDs, remote on/off and power fail signal
Electrical connection via H15 male connector according to DIN 41612

Standards

EN60950, EN55022

Approvals

UL, TUV
