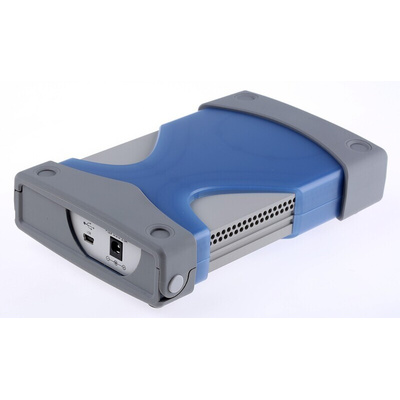

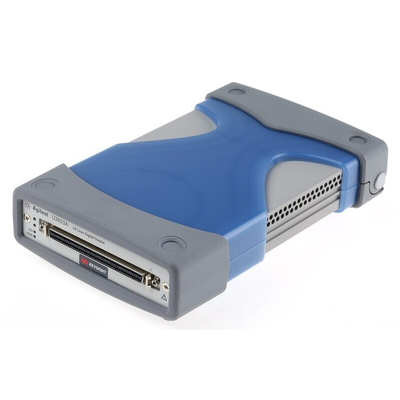

Keysight Technologies U2653A USB Digital I/O Module, For Use With Data Logger

U2100A Series USB Standalone and U2600A Series USB Modular Isolated Digital Input

High input/output voltage range meets demanding requirements for industrial applications such as driving relays and actuators. Limit applications include industrial control and automation, isolated data communication, logic level interface and laboratory automation. All models are highly reliable and excellent quality.

Features and Benefits

• 32 opto-isolated lines and up to 24V voltage range (U2100A series)
• 64 opto-isolated lines and up to 35V voltage range (U2600A series)
• Isolation voltage up to 1500Vrms (U2100A) and 1250Vrms (U2600A)
• Supports SCPI
• Compatible with wide range of Application Development Environments

What is data acquisition?

Data acquisition is an activity which samples signals, measuring physical conditions. With this unit, the results are then converted into digital values. Data is then logged on a USB or another type of storage device for the comparison of results. To explain it in its simplest terms, measuring the temperature of the concrete outside during summer with a simple device, would be classed as data acquisition.

Note

For oscilloscope please see 686-2087 , 686-2081 and for signal generation equipment please see 686-2090 , 686-2093

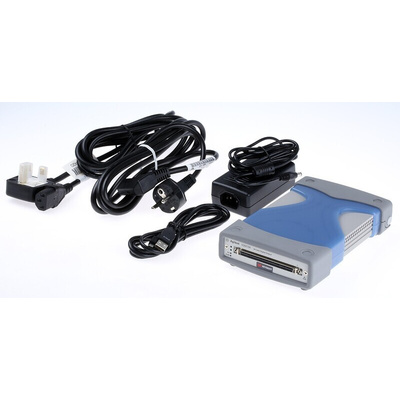

Supplied with
type":"Supplied with",

AC/DC power adaptor, power cord, USB extension cable, L-mount kit (for use with moular products chassis 686-2075), Quick Start Guide, Measurement Manager, USB Modular Products Reference CD-ROM, Automation-Ready CD-ROM, Certificate of Calibration

Keysight USB Data Acquisition (DAQ)

The Keysight USB Data Acquisition (DAQ) family offers the choice and flexibility to create standalone or modular solutions that expand and evolve according to test requirements.

USB Modular Products Datasheet

Agilent U2600A Series USB Isolated Digital Input/Output Modules User’s Guide
