Keysight Technologies U2781A USB 2.0 USB Data Acquisition, Устройство сбора данных

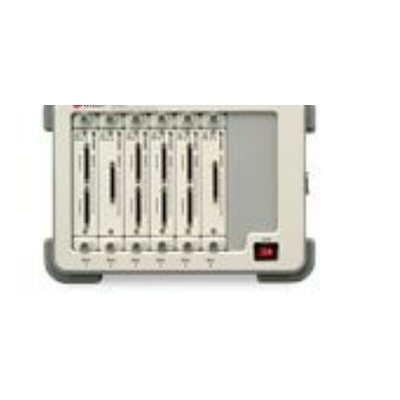

U2781A USB Modular Product Chassis

High-performance 4U chassis for housing up to 6 Keysight USB modular products e.g. U2300 Series, typically 686-2037 , U2500 Series, typically 686-2053 and U2600 Series, typically 686-2069 . Slotting in modular products enables expansion of channels, providing high-density data acquisition solutions. Wide-ranging applications across industrial and scientific environments in R&D, design-validation and manufacturing. Synchronization capability between modules helps lower cost of testing and accelerate test system integration and development.

Internal and external 10MHz reference clock
Simultaneous Synchronization Interface (SSI)
Star trigger
External trigger-in and trigger-out signals
Temperature and fan speed monitoring
Compatible with Hi-Speed
USB 2.0 and USBTMC 488.2 standards

Note

For oscilloscope please see 686-2087 , 686-2081 and for signal generation equipment please see 686-2090 , 686-2093

Supplied with

200W universal AC power supply, built-in protection circuit, power cord, USB extension kit, L-mount kit, Agilent Automation-Ready CD-ROM, Quick Start Guide, USB Modular Products Reference CD-ROM, Functional Test Certificate

Keysight USB Data Acquisition (DAQ)

The Keysight USB Data Acquisition (DAQ) family offers the choice and flexibility to create standalone or modular solutions that expand and evolve according to test requirements.

USB Modular Products Datasheet

Agilent U2781A USB Modular Instrument Chassis User’s Guide
