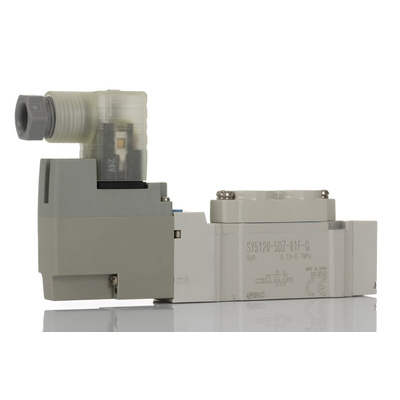

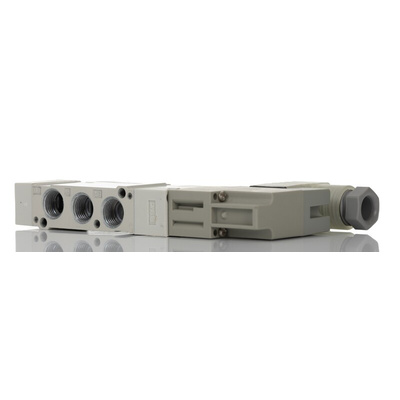

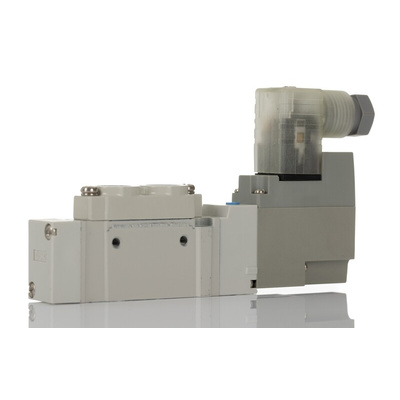

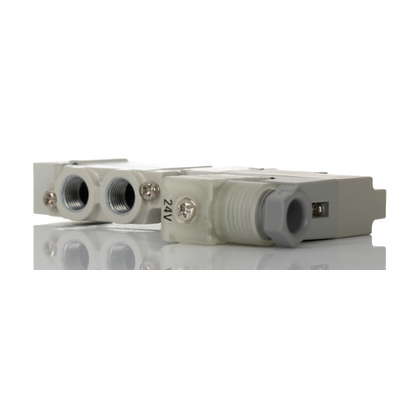

SY5120-5DZ-01F-Q, SMC 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 1/8 SY5000 Series 24V dc, Клапан

SMC Solenoid Valve

The SMC SY5000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has a 1/8in G port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. The valve space-saving design means that it can be individually mounted onto sub plates or configured onto base mount manifolds. It has a pilot exhaust and a copper-free design. This valve can be used singly or with a manifold system. The low power consumption enables direct operation by PLC and it has a non-locking manual override. This valve is available with a DIN connector.

Features and Benefits

Solenoid power consumption is 1.6VA
Maximum flow rate is 500.5NL/min
Operating pressure ranges between 0.15MPa and 0.7MPa
Operating temperature ranges between -10°C and 50°C
Supplied with surge voltage suppressors

Certifications

IP65 rated
CE certified
