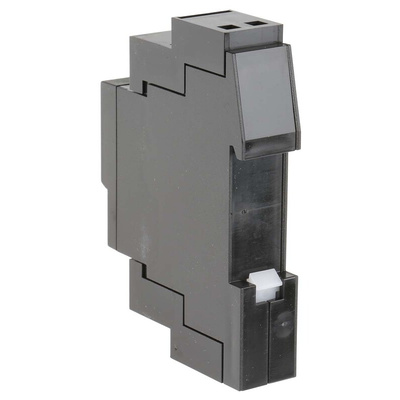

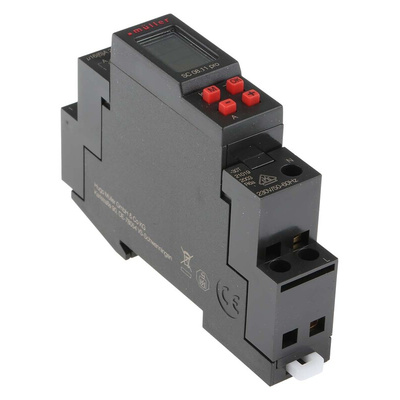

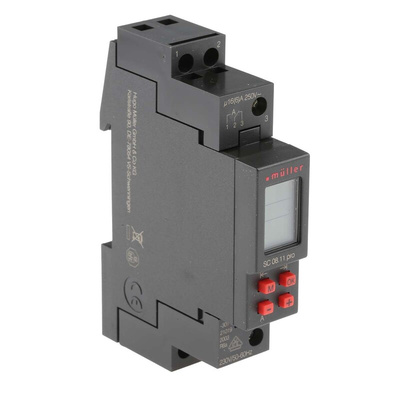

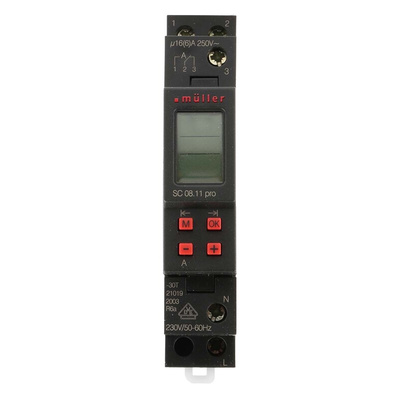

SC 08.11 pro, Muller 1 Channel Digital DIN Rail Time Switch Measures Minutes, 230 V ac

SC 08.11 pro, Single Channel

Manual permanent mode
Manual override
Permanent by date / holiday function
Automatic sorting of switching times on readout
Unrestricted block programming
Elapsed time and pulse counter
Pulse function
Security by PIN-Code
PC programming module (453-934) and data key (453-930) available separately

Muller Time switch

The Finder interface relay module is an innovative, ultra-compact electromechanical device equipped with a 24AC/DC coil and an SPDT 1C/O contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC. The high number of approvals make it useful for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space-saving is essential.

Features and Benefits

• DIN rail mounting
• Minimum interval 1 minute
• Switching capacity 16A
• Time base is quartz
• Permanent by date/holiday function
• Manual permanent mode
• Manual override
• Automatic sorting of switching times on readout
• Unrestricted block programming
• Fully automatic daylight saving time
• Elapsed time and pulse counter
• Pulse function
• Screw terminal connection
• Operating temperatures range between -30°C and 50°C

Applications

• Ideal for outdoor and street lighting
• Control of lighting, heating and ventilation

Certifications

• IP20 rated
• DIN EN 6052
• VDE approved

Remotely Programmable

Digital Time Switch SC08 11 Pro Data Sheet

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
