Microchip MCP4728EV Development Kit Signal Conversion Development Kit

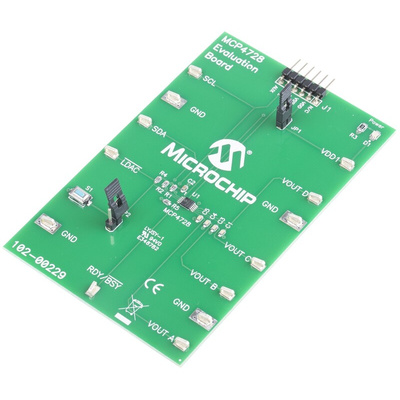

Evaluation Board for MCP4728 Quad 12-Bit Digital to Analogue Converter

This Evaluation Board is a tool for quick and easy evaluation of the MCP4728 4-channel 12-bit DAC device. It contains the MCP4728 device and connection pins for the PICkit™ Serial Analyzer. Simply connect the board to the Serial Analyzer and type the DAC input data into the Serial Analyzer's PC GUI program. The Serial Analyzer will then send the user's data to the DAC device automatically. The new DAC's analogue outputs will be available immediately at the DAC output pins.

12-Bit Voltage Output DAC with four buffered outputs
On-board EEPROM for DAC Codes and I²C address bits
Internal or External Voltage Reference selection
Output Voltage Range: using internal V_REF (2.048V): 0.000 to 2.048V with Gain=1, 0.000 to 4.096V with Gain=2
Output Voltage Range: using external V_REF (V_DD): 0.000 to V_DD
±0.2LSB DNL (typical)
Fast Settling Time: 6μs (typical)
Normal or Power-Down Mode
Low power consumption
Voltage range: +2.7 to +5.5Vdc
I²C serial interface: address bits: user programmable to EEPROM
I²C speed: standard (100kbps), Fast (400kbps) and High Speed (3.4Mbps) modes
10-pin MSOP package
Extended temperature range: -40°C to +125°C

Note

The PICkit™ Serial Analyzer is NOT included, but is sold separately.
