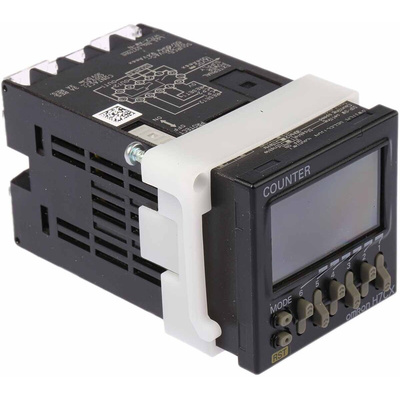

Omron Digital Counter/Tachometer
The Omron H7CX series 6-digit LCD display, panel mount, multifunction counter has a voltage rating that ranges between 100VAC and 240VAC. The 3-colour display value red, green or orange (except H7CX-A11 models) increases character height and display segments. It supports Service Life Notification - the number of times that the control output turns ON is counted and an alarm is displayed when a preset count is exceeded.
It has a maximum count frequency 5KHz.
Features and Benefits
Simple operation using UP/DOWN keys for digits
Twin counter mode
Front panel dimension 48mm x 48mm
Factory-set to 2-stage setting
Reliable - Setting upper limit restricts the set time and helps prevent incorrect settings
Input contact NPN or PNP
Measurement ranges between -99999 and 999999

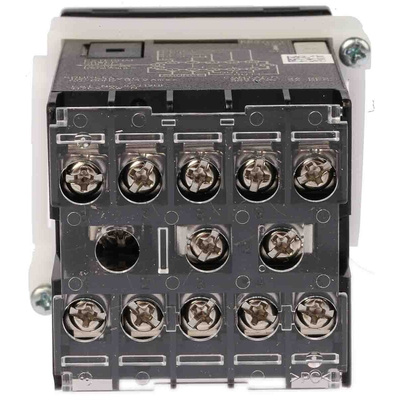

Plug-in screw terminals
Contact output (SPST + SPDT)
Operating temperature ranges between -10°C and 55°C
Applications
Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines
Certifications
IP66 rated
