RC24W3K, Souriau Female Crimp Circular Connector Contact, Contact Size 20, Wire Size 26 → 24 AWG, Контакты разъема

Machined Contacts and Tooling

Suitable for UTO Series (size 16) and UTOW Series (size 20)

Solid machined or stamped crimp and solder pins and sockets
Support crimp tool and positioner

Note

TRIM TRIO® RC/RM machined contact size 16 can be used in any contact position in any connector from the TRIM TRIO® interconnection system: UTP, UTS, UTG, UTO, MBG, MS-M, MSG / MB, SMS, UTV, as well as in VGE1 and 838 connectors

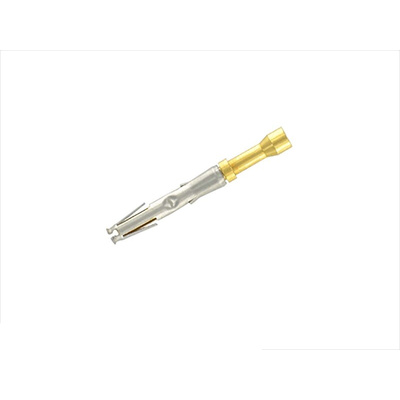

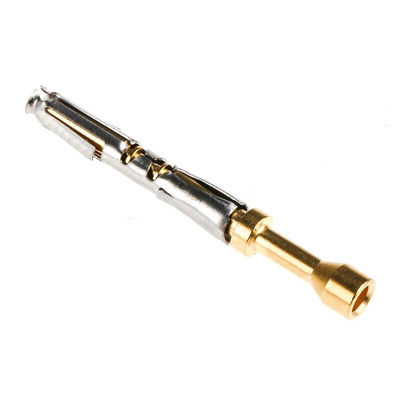

Souriau Socket Contact

The Souriau RC series female socket contact has a contact size of 20 and wire size ranging between 24AWG and 26AWG. This contact is made of copper alloy and has gold over nickel plating. It can be used with the Trim Trio series connectors.
Note:
TRIM TRIO® RC/RM machined contact size 16 can be used in any contact position in any connector from the TRIM TRIO® interconnection system: UTP, UTS, UTG, UTO, MBG, MS-M, MSG/MB, SMS, UTV, as well as in VGE1 and 838 connectors

Features and Benefits

Current rating is 7.5A
Cable mount
Contact resistance is 3mohm
Crimp termination

Souriau UTS

Female Machined Sealok Contact Drawing
