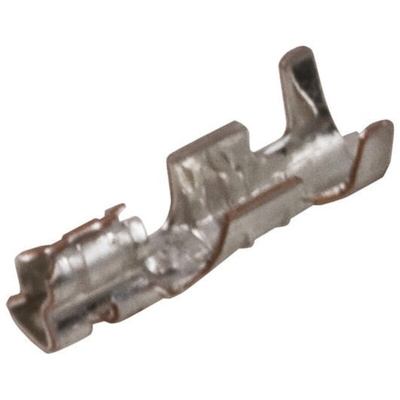

08-70-1039, Molex SPOX Series Female Crimp Terminal, 28AWG Min, 22AWG Max, Контакты

Molex SPOX Receptacle and Pin Terminals

Our range SPOX receptacle and pin terminals are compatible for use with SPOX series plugs and receptacle housings.

Features and Benefits:

• Spring box style design
• High electrical reliability
• Crimp or compression termination interface style
• Wire size ranges from 28 AWG to 18 AWG

This design also protects the mating face area and prevents fish-hooking from wires during handling.

Application:

• Communication
• Networking

Molex Female Crimp Terminal, 28 to 18AWG, Phosphor Bronze Contacts - SPOX Series - 08-70-1040

Use this female crimp terminal from Molex to keep your PCBs functioning effectively. It relays electrical current and signals between contacts and your PCB, and is essential for completing circuits that actuate systems and processes. An innovative spring-box design means it has multiple points of contact that protect the mating interface area for effective signal transmission. To safeguard the integrity of your assemblies, it also prevents fish-hooking from wires during handling.

• Phosphor bronze contact material and tin contact plating are highly conductive for the effective transfer of signals
• Can be used with wire sizes between 28 and 18AWG for different applications
• Interface supports both crimping and compression termination for versatile use

Applications

• Communication
• Networking applications
• Mobile and desktop computers
• Industrial control processes

Why is the contact material of a crimp terminal important?

Contacts are made from and plated with different materials. These have varying degrees of conductivity, which directly affects the reliability of your connections and signal transfers. You need dependable relays to keep your applications functioning effectively.

3.96mm Molex SPOX Range

The SPOX range has a terminal which is like a "spring box". This design enables multiple points of contact which protects the mating interface area and also prevents fish-hooking from wires during handling.
