RS PRO 13A, Fused Spur, Выключатель

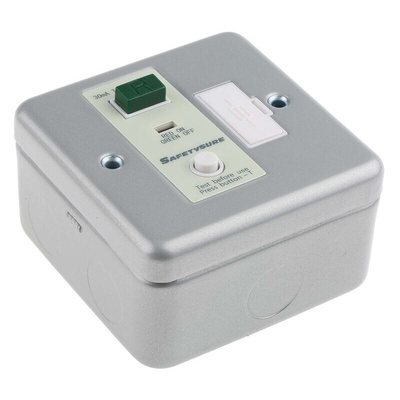

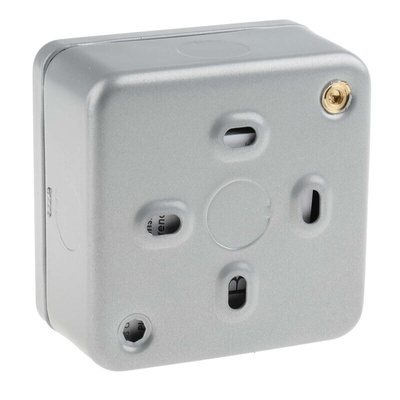

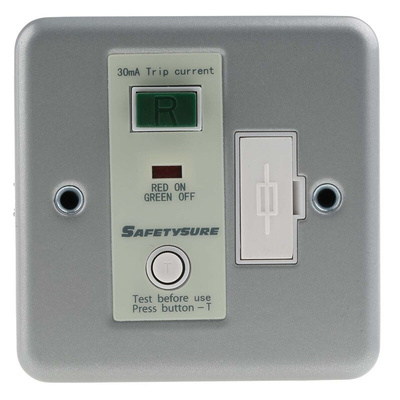

RS PRO 13 A, Fused Spur

The RS PRO 13-amp fused spur can automatically switch off live current to protect against electrical shocks and fires. It's suitable to use as an alternative to a conventional plug socket on high-powered electrical items, such as ovens.
Often referred to as a fused connection unit, this metal-clad component has passive circuitry. This means that, in the event of it tripping, power will be immediately restored without you having to reset the device manually. It has a trip speed of 30 ms and trip current of 30 mA, with two poles and an earth terminal.

The fused spur conforms to British Standards for electrical socket outlets and can be used with thermostats and boilers, or even heaters in bathrooms. It's designed to be directly wired to the electrical cable of an appliance. For this reason, RS PRO recommends it's only installed or removed by a qualified electrician.

Features and Benefits

• Passive fused spur with earth terminal
• Grey in colour
• Surface mounting
• Current rating of 13 A
• Two poles
• Dimensions of 86.5 mm x 86.5 mm x 46 mm
• Minimum box depth of 46 mm
• Fuse type of BS 1363, BS 7288
• Conforms to BS 7288:1990 (British standards for sockets incorporating residual current devices) and BS 1363 (British standards for single-phase AC plugs and sockets)
• RoHS (Restriction of Hazardous Substances) Compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
