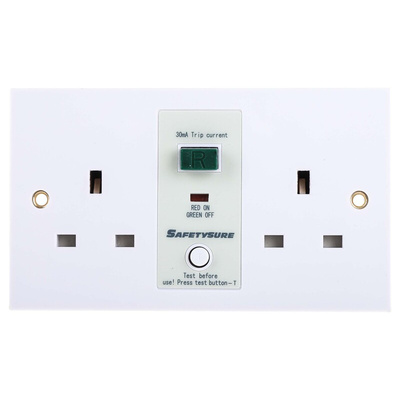

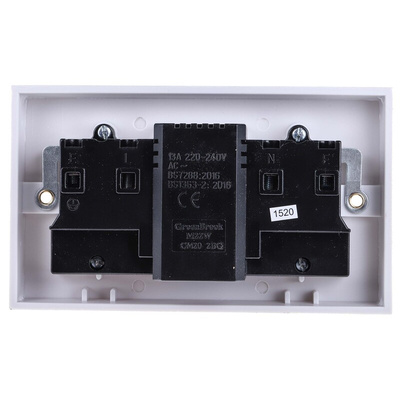

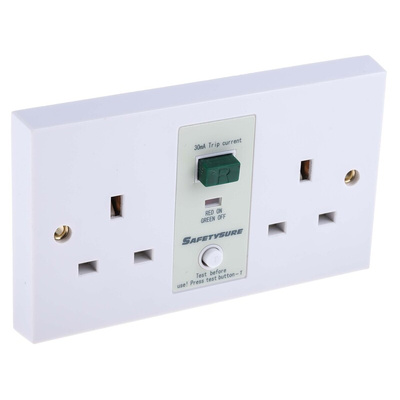

RS PRO 13A, BS Fixing, Passive, 2 Gang RCD Socket, Flush Mount , Switched, 230 V ac, White

RS PRO 13 A, BS Fixing, Passive, 2 Gang RCD Sockets, Urea Formaldehyde, Flush Mount, Switched, 230 V AC, White Polished

This RS PRO residual current device (RCD) socket trips and interrupts the power supply when the electrical current is faulty. Use it to prevent damage to devices, protect against electrical shocks and manage fire hazards. It's mechanically latched and will automatically reset after a power outage.
The socket meets the requirements of the British Standard BS1363, meaning it has neutral and line slot shutters that close when nothing is plugged in for added safety. Use it for appliances that are permanently plugged in, like washers.

Features and Benefits

• White colour
• White colour family
• Current rating of 13 A
• Dimensions of 86.5 (H) x 147 (W) x 35 (D) mm
• Earth terminal
• Faceplate depth of 16 mm
• Screwed faceplate mounting type
• Polished finish
• British Standard fixing standard
• Height of 86.5 mm
• Urea-formaldehyde material
• Minimum box depth of 35 mm
• Flush mount style
• Two poles
• Two gangs
• Passive RCD type
• BS 1363, BS 7288 socket type
• Switched
• Trip current of 30 mA
• Trip speed of 30 ms
• Voltage rating of 230 V AC
• Width of 147 mm
