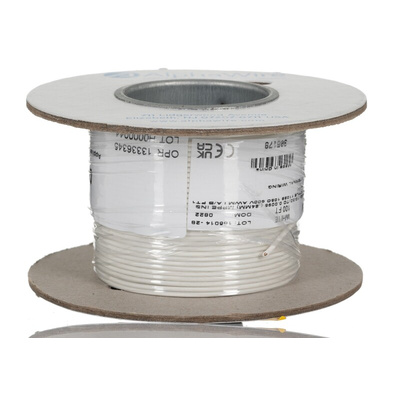

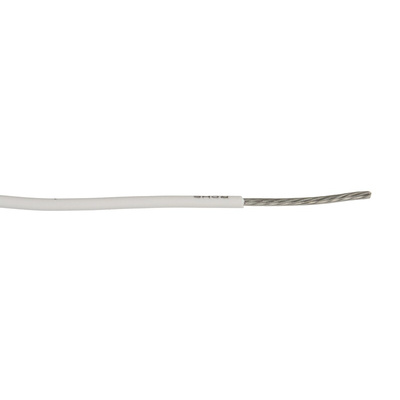

6714 WH005, Alpha Wire EcoWire Series White 0.52 mm² Hook Up Wire, 20 AWG, 10/0.25 mm, 30m, MPPE Insulation

Alpha Wire 600 V, mPPE Hook Up Wire, EcoWire Series

EcoWire from Alpha Wire is the latest innovation in hook-up wire. EcoWire combines increased performance with a minimal environmental impact due to it being fully recyclable.
This hook up wire is manufactured from a modified polyphenylene ether (mPPE) thermoplastic. EcoWire can be easily recycled since it does not contain hazardous materials. The enhanced dielectric properties of this hook up wire make it possible to have a reduced wall thickness while still maintaining the same electrical properties as PVC.

Features and Benefits

• Fully recyclable
• Up to 45% smaller diameter than PVC
• Up to 40% lighter than other insulation materials
• Excellent dielectric strength
• Low specific gravity
• Flame retardant to UL VW-1 rating
• EcoWire Plus range available with excellent resistance to hazardous oils and chemicals
• Stranded or solid tinned copper conductors
• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)

What is UL/CSA standard?

The UL standard (Underwriters Laboratories) is a recognised certificate that requires the rigorous testing of product samples to determine whether the product meets specific, defined requirements. These requirements are often based on UL's published and nationally recognised Standards for Safety.
CSA approval (Canadian Standards Association) provides product testing and certification for electrical, mechanical, plumbing, gas and various other products. This approval is recognised in Canada, the U.S and various countries around the world. It includes a stringent series of flame tests on wires and cables.

Product Application Information

Hook up wire is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines and appliances.
Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.

Standards

UL AWM 11028 VW-1, CSA AWM I A/B FT1, RoHS/RoHS2 Compliant, IEC 60332-2 Flame Behavior, REACH Compliant, CE Compliant

Belden Alpha Wire Hook Up Wire, 1.4mm Outer Diameter, 0.25mm Strand Size - EcoWire Series - 6714 WH005

Need a robust cable to make internal links in your industrial devices? Choose this hook up wire from Belden Alpha Wire. It has a single copper core that carries high 600V voltages to bring your heavy-duty motor, control and power systems to life. Rugged mPPE insulation resists damage from chemicals, electricity and fire, so you can trust the wire to hold its own in challenging settings.

Features & Benefits

• Performs without a glitch in temperatures from -40°C to +105°C
• Halogen-free construction, so doesn't give off toxic smoke in a fire
• 20AWG size makes it easy to route through tight spaces

Applications

• Manufacturing facilities
• Construction industry
• Automotive production

Is this cable recyclable?

This wire's copper strands, insulation and jacket can all be recycled at the end of its life, so it's an environmentally-conscious option.
