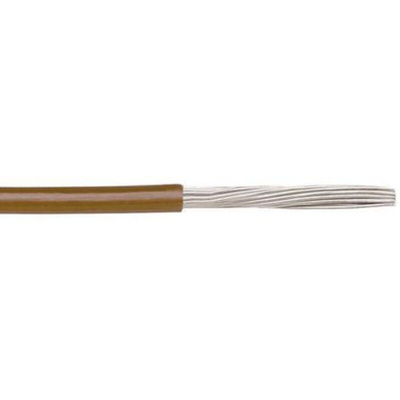

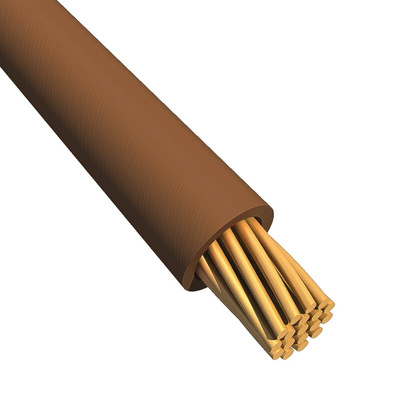

6714 BR005, Alpha Wire EcoWire Series Brown 0.52 mm² Hook Up Wire, 20 AWG, 10/0.25 mm, 30m, MPPE Insulation

Alpha Wire 600 V, mPPE Hook Up Wire, EcoWire Series

EcoWire from Alpha Wire is the latest innovation in hook-up wire. EcoWire combines increased performance with a minimal environmental impact due to it being fully recyclable.
This hook up wire is manufactured from a modified polyphenylene ether (mPPE) thermoplastic. EcoWire can be easily recycled since it does not contain hazardous materials. The enhanced dielectric properties of this hook up wire make it possible to have a reduced wall thickness while still maintaining the same electrical properties as PVC.

Features and Benefits

• Fully recyclable

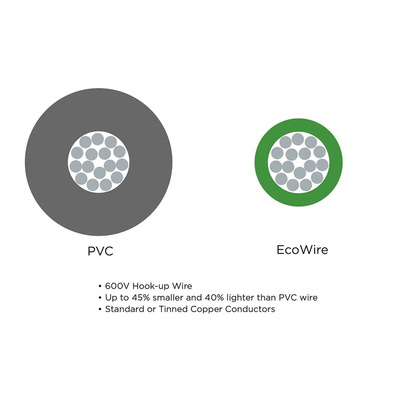

• Up to 45% smaller diameter than PVC
• Up to 40% lighter than other insulation materials
• Excellent dielectric strength
• Low specific gravity
• Flame retardant to UL VW-1 rating
• EcoWire Plus range available with excellent resistance to hazardous oils and chemicals
• Stranded or solid tinned copper conductors
• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)

What is UL/CSA standard?

The UL standard (Underwriters Laboratories) is a recognised certificate that requires the rigorous testing of product samples to determine whether the product meets specific, defined requirements. These requirements are often based on UL's published and nationally recognised Standards for Safety.
CSA approval (Canadian Standards Association) provides product testing and certification for electrical, mechanical, plumbing, gas and various other products. This approval is recognised in Canada, the U.S and various countries around the world. It includes a stringent series of flame tests on wires and cables.

Product Application Information

Hook up wire is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines and appliances.
Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.

Standards

UL AWM 11028 VW-1, CSA AWM I A/B FT1, RoHS/RoHS2 Compliant, IEC 60332-2 Flame Behavior, REACH Compliant, CE Compliant

Belden Alpha Wire Hook Up Wire, 0.52 mm² CSA, 20AWG - EcoWire Series - 6714 BR001

Looking for a strong and flexible wire for control panels, electronic equipment and the internal wiring of low-voltage and low-current applications? This hook up wire from Belden fits the bill. It’s an EcoWire type, meaning the insulation material is up to 45% thinner than standard PVC for sustainability and flexibility. It’s also fully recyclable because it doesn’t contain any hazardous materials. The sheathing is resistant to oils and chemicals, making it ideal for use in industrial environments. You can rely on this cable in challenging conditions thanks to its operating temperature range of -40°C to +105°C.

Features & Benefits

• EcoWire cables are 40% lighter than equivalent alternatives, to minimise strain on equipment
• Brown colour for quick identification
• Copper core for high conductivity

Applications

• Lighting equipment
• OEM equipment
• Small industrial machinery

What’s the voltage rating of this hook up wire?

For versatility, this hook up wire has a voltage rating of 600V.
