FTDI Chip Development Kit USB-COM232-PLUS2

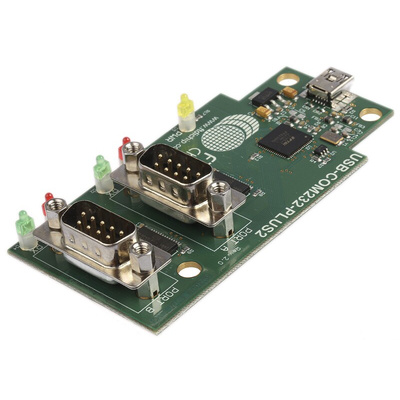

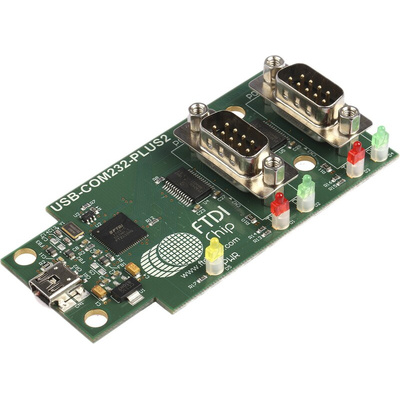

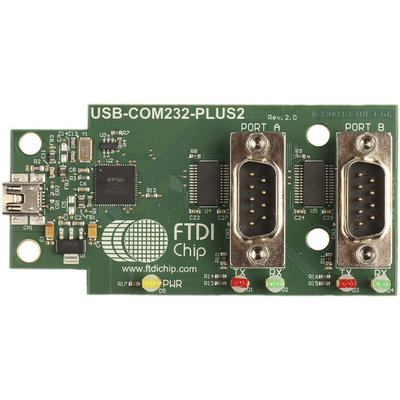

FTDI Chip Adapter Board

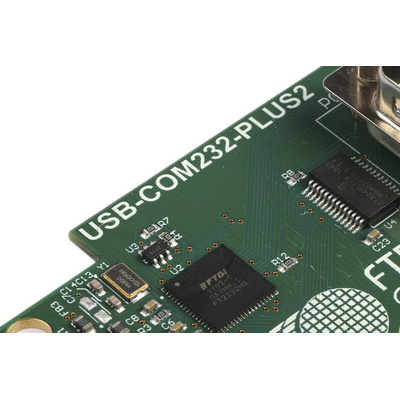

The FTDI Chip adapter board provides a simple method of adapting two legacy RS232 serial devices to a modern USB port. This is accomplished by incorporating the industry standard USB2.0 hi-speed serial bridge chip. This module uses a standard USB-miniB device connector for connecting to an upstream host or hub port. This module requires USB device drivers, which is used to make the module appear as two Virtual COM Port (VCP). This allows existing serial communications software, such as HyperTerminal to exchange data through the module to a legacy RS232 peripheral device.

Features and Benefits

Easy plug and play installation and RS-232 device connection
Industry Standard FTDI chip set and device drivers for maximum compatibility
Powered by USB port, no external power adapter required
Serial port speed up to 1Mbps
LEDs indicate USB enumeration, RxD and TxD for monitoring port status and easy diagnostics
Operating temperature ranges between -40°C and 85°C
Two DE-9P male connectors
Data rate is 1Mbps

Applications

Embedded systems
Communication

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
CE
FCC certified
