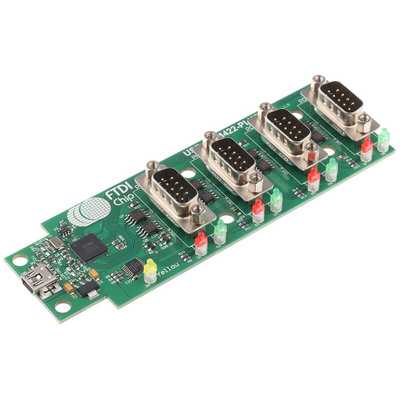

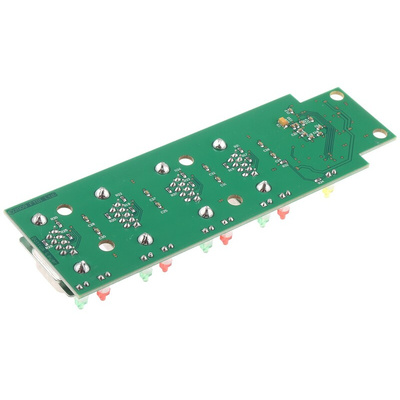

FTDI Chip Development Kit USB-COM422-PLUS4

FTDI Chip Adapter Board

The FTDI Chip USB to RS485 adapter board is a USB to quad interface RS422 level serial UART incorporating FTDI’s FT2232H hi-speed USB2.0 to dual serial UART interface IC device. This adaptor provides a fast and simple way to connect devices with an RS422 interface to USB. This module uses a standard USB Mini B device connector for connection to an upstream host or hub port. It requires USB device drivers, which are used to make the board appear as four Virtual COM Ports (VCP). This allows existing serial communication software, such as HyperTerminal to exchange data through the board to a legacy RS422 peripheral device.
Versions Available:
(687-7730) USB-COM232-Plus1 - USB to RS232 Adapter
(687-7749) USB-COM232-Plus2 - USB to Dual RS232 Adapter
(687-7742) USB-COM232-Plus4 - USB to Quad RS-232 Adapter
(687-7752) USB-COM422-Plus1 - USB to RS422 Adapter
(687-7761) USB-COM422-Plus2 - USB to Dual RS422 Adapter
(687-7764) USB-COM422-Plus4 - USB to Quad RS422 Adapter
(687-7746) USB-COM485-Plus1 - USB to RS485 Adapter
(687-7755) USB-COM485-Plus2 - USB to Dual RS485 Adapter
(687-7758) USB-COM485-Plus4 - USB to Quad RS-485 Adapter

Features and Benefits

Easy plug and play installation and RS-422 device connection
Industry standard FTDI chip set and device drivers for maximum compatibility
Powered by USB port, no external power adapter required
Serial port speed up to 10Mbps
LEDs indicate USB Enumeration, RxD, TxD for monitoring port status and easy diagnostics
Operating temperature ranges between -40°C and 85°C
Four DE-9P male connectors
Supports Windows Server 2008, 2003, Vista, XP, 2000, Windows CE, Linux, Mac OS X
Microsoft Windows WHQL-certified, Mac OS X, Linux and Windows CE device drivers

Applications

Embedded systems
Communication

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
CE
FCC certified
