US232R-100-BLK, FTDI Chip Converter

USB to RS-232 Evaluation Cables, FTDI Chip

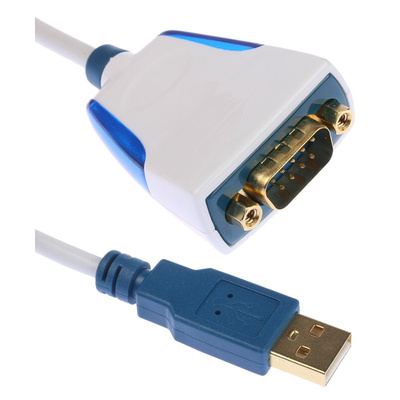

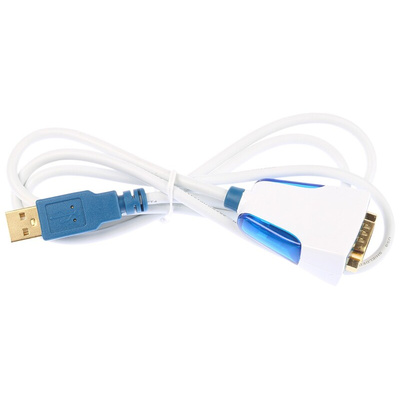

This range of USB to RS-232 cables enables you to test the functionality of our FT232R chip before integrating it into your design. The cables are available in several lengths – 10 cm, 1 m and 5 m lengths and all with a standard DB9 connector. These cables are supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux.

Applications

USB to RS232 Converter
Upgrading legacy peripherals to USB
USB Industrial Control
USB barcode Readers
USB Software/Hardware Encryption Dongles

More about the US232R-100-BLK…

The FTDI US232R-100-BLK is a premium USB to RS232 converter cable in black. It can also be used to evaluate the FT232R chip and drivers.
In comparison to more basic models, the US232R-10 features a black gloss finish. It also has blue LED lit sides to indicate Tx and Rx traffic. The USB and DB9 connectors on the US232R-10 are also gold plated, for a high quality and durability.

What communication rates can it achieve?
The US232R-100-BLK can deliver communication rates from 300Baud to 1MBaud.

Approvals
The US232R-100-BLK is CE and FCC approved.
