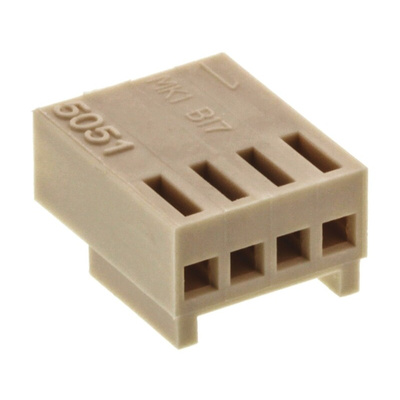

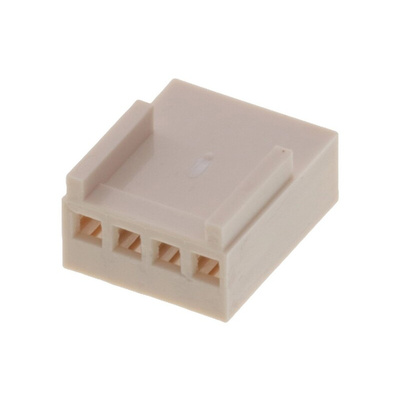

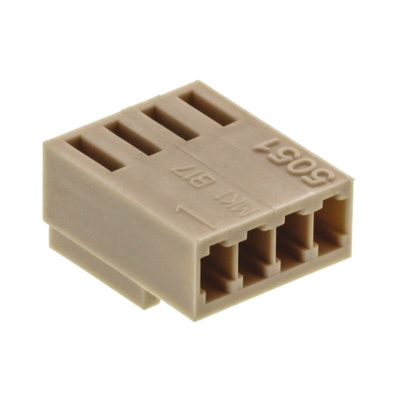

22-01-1042, Molex, KK Female Connector Housing, 2.5mm Pitch, 4 Way, 1 Row, Корпус разъема

KK Housings, 5051 Series for 2759 Series Terminals

Friction Lock for improved mated retention with locking headers
Mates with 5045 Series Vertical Headers and 5046 Series Right Angle Headers typical stock numbers 687-7213 and 687-7263 respectively
Use with 2759 Series terminals typical stock number 670-2263

Molex Female Connector Housing, 2.5mm Pitch, 4 Way - KK Series - 22-01-1042

Use this connector housing from Molex to ease the linking of your power and data wires to PCBs (printed circuit boards). As it has four contact points, you can transmit power and data signals to as many as four circuits at the same time. With compact dimensions of 10.5 (L) x 12.7 (W) x 6.6mm (D), the unit is a practical choice for small setups. It also mates with both vertical and right-angle headers, making it a versatile connection solution. You'll find it useful in the computing and electronics industries.

• Broad operating temperature range of -40°C to +105°C for use in demanding conditions
• Light weight of 0.54g so it's easy to handle
• Nylon resin material for durability and impact resistance
• Friction lock for improved retention with locking headers

Applications

• Mechanical and IT industry
• Automotive equipment
• Small household appliances

Is this connector housing flame resistant?

The connector housing is self-extinguishing and burning stops within 10 seconds when a fire occurs. This means it improves safety in your devices.

2.5mm Wire to Board or Wire - Molex

Datasheet

Line Drawing

Specification Sheet - 22-01-1042
