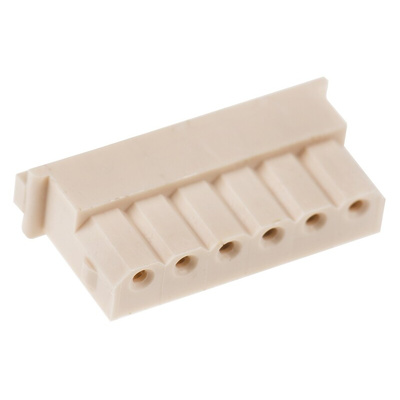

50-37-5063, Molex, SPOX Female Connector Housing, 2.5mm Pitch, 6 Way, 1 Row, Корпус разъема

Molex 5264 Series, SPOX Connector Housings

The 5264 SPOX Series from Molex are a range of connector housings with a 2.5mm pitch. They have been designed for wire to board connections and have a spring box shape terminal hence the name spox. This series of crimp housings mate with the 5267 series vertical shrouded PCB headers and the 5268 series right angled shrouded PCB header.

• 2.5mm pitch
• 2 to 12 positions
• High mechanical reliability
• Single row housing
• Natural colour
• Box style terminal

Molex Connector Housing, Cable Mounting, 8mm Width - SPOX 5264 Series - 50-37-5063

Need a high-performing yet compact wire-to-board connection for up to six circuits? Link in with this cable-mounted connector housing from Molex. Diminutive dimensions of just 8 (W) x 3.9 (D) x 17.4mm (L) mean it's a space-saving solution for crowded PCBs. As it can operate effectively in temperatures from -40°C to +105°C, you can rely on this tough piece of kit to get on with its job in challenging environments.

Features & Benefits

• Polarised design prevents mismating
• Flame-retardant casing self-extinguishes in under 10 seconds to reduce fire hazards
• Robust nylon material is resistant to wear and abrasion for long-lasting performance

Applications

• Industrial automation
• Consumer electronics
• Vehicle manufacturing

Is this product suitable for high-vibration environments?

Yes. Thanks to the handy built-in friction lock, you can rest assured your connection is secure against vibration, shock and rough handling.

2.5mm Wire to Board or Wire - Molex

2.5 low profile receptacle housing Drawing

Datasheet

Line Drawing
