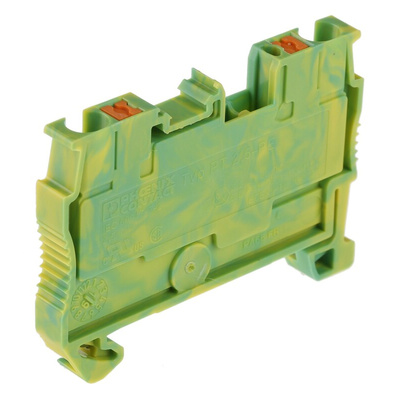

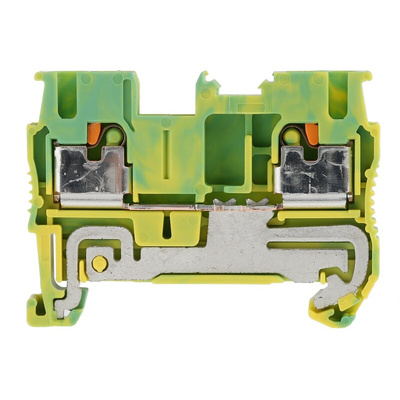

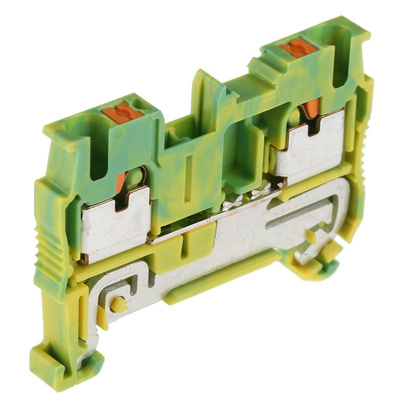

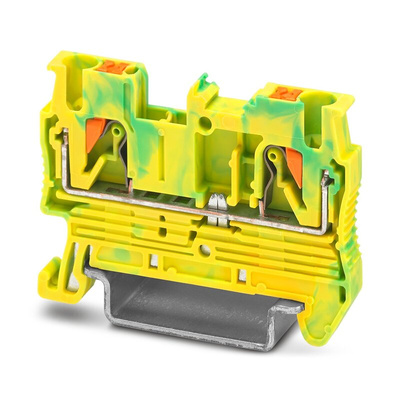

3209536, Phoenix Contact PT 2.5-PE Series Green/Yellow Earth Terminal Block, 0.14 → 4mm², Single-Level, Push In

Phoenix Contact Earth Terminal Block, Push-In Connection, 6kV Rated Surge Voltage - PT 2,5-PE - 3209536

Clamp down on faulty currents in your electrical system by using this earth terminal block from Phoenix Contact. With its 2-connection design, you can set up 2 wires to redirect excess currents to the ground, shielding your panel from short circuits and current overload.
Push-in termination lets you attach your cables in a jiffy, for a quick and tool-free setup. As the block takes wires that range in size from 26 to 12AWG, you'll find it handy when setting up cables of different sizes.
With built-in finger and back-of-the-hand protection, you can safely touch this device without worrying about getting a jolt. As it has a shock duration of up to 18ms, rest assured that it reliably stands up to demanding workplaces.

Features & Benefits

• Industry-standard green and yellow housing for quick identification in crowded installations
• Rated surge voltage of 6kV to withstand rogue currents
• Flammability rating of UL 94-V0 indicates that burning stops in 10 seconds
• ATEX-certified for safe use in potentially explosive environments
• PA housing offers insulation protection to help prevent electric shocks

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.

Datasheet 3209536

Datasheet 3209536

Installation Sheet - 3209536
