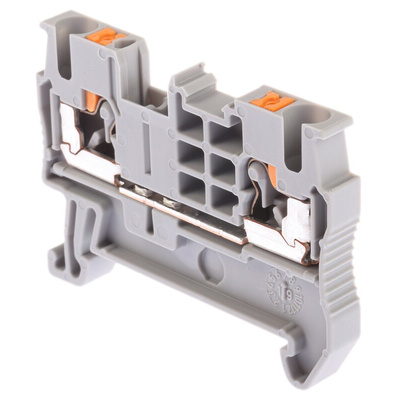

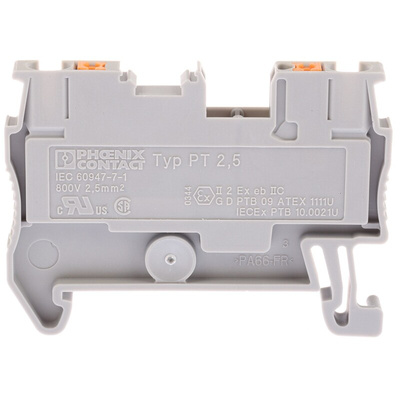

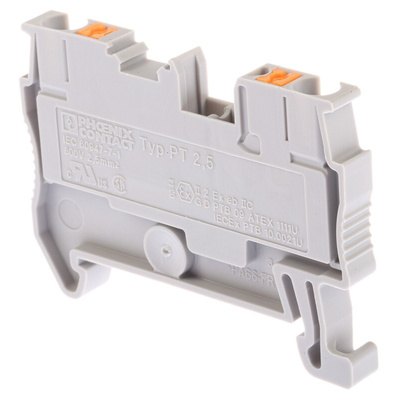

3209510, Phoenix Contact PT 2.5 Series Grey Feed Through Terminal Block, 0.14 → 4mm², Single-Level, Push In Termination,

Phoenix Contact Feed-Through Terminal Block, PA Housing, 18ms Shock Resistance - PT 2,5 - 3209510

Linking two wires is the work of moments, thanks to this feed-through terminal block from Phoenix Contact. It houses wires that range in size from 26 to 12AWG, so it's a versatile option. Thanks to a 2-connection design, it makes it a breeze to assemble a dual-cable structure. Simple push-in termination means setting up your wires is a tool-free job, cutting down the installation time.
A block like this is often used in machine building and process industry applications. Its robust PA housing is on hand to offer insulation protection, keeping it grounded from short circuits and current overloads. What's more, it comes with built-in mechanical shock resistance up to 18ms, so it packs a punch in vibrating conditions.

Features & Benefits

• Nominal current rating of 24A to withstand high-power systems
• Safe for use in challenging environments, as it has an operating temperature range between -50°C and +110°C
• Open side panel for convenient terminal access without complete removal
• Flammability rating of UL 94-V0 indicates burning stops in 10 seconds, helping to stop fire from spreading

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
