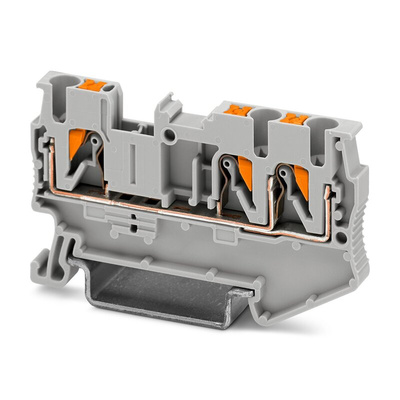

3209549, Phoenix Contact PT 2.5-TWIN Series Grey Feed Through Terminal Block, 0.14 → 4mm², Single-Level, Push In

Phoenix Contact Feed-Through Terminal Block, 3 Connections, 24A Current Rating - PT 2,5-TWIN - 3209549

To cut the hassle out of wire-to-wire setup in your panel, reach for this feed-through terminal block from Phoenix Contact. It's a single-level unit that features 3 connections, so you get triple the space for assembling your multiconductor system. The simple push-in connection method means it's a breeze to insert cables and achieve a firm fix without any tools. Thanks to the open panel at the unit's side, there's no need to dismantle it when you want to reach your terminals.
A nominal current rating of 24A makes this the right tool for the job when you're working with heavy-duty equipment. The rugged PA body provides a high level of protection against electric shocks, giving you peace of mind when handling the device. Industries such as manufacturing, transportation and energy frequently use these blocks for securely transmitting electrical signals between pieces of equipment.

Features & Benefits

• Integrated shock resistance to withstand challenging operations
• ATEX certification indicates that it's safe for potentially explosive settings
• Flammability rating of UL 94-V0 shows that fire stops in 10 seconds, for increased safety

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
