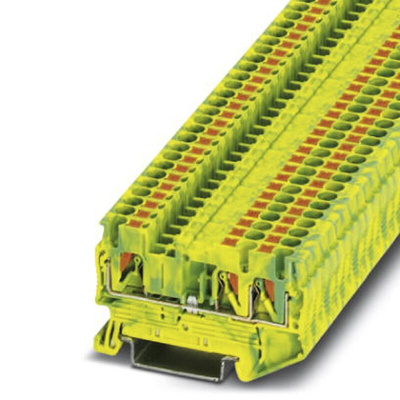

3209565, Phoenix Contact PTU 2.5-TWIN-PE Series Green/Yellow Earth Terminal Block, 0.14 → 4mm², Single-Level, Push In

Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks

The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.

PT Series - Features and Benefits

• Can be bridged together easily with multi-conductor and function terminals
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply

Phoenix Contact Ground Terminal Block, 26 to 12AWG, Push-In Termination - PT 2.5-TWIN-PE - 3209565

This ground terminal block from Phoenix Contact has a double bridge shaft that allows for the simple supply or distribution of power. It helps to create an efficient electrical circuit by connecting wiring from the input or output ports of assembled equipment.
The unit's modular design makes it easy to bridge together with other terminals for simple expansion of your control circuit. Its push-in connection technology makes wiring quick, while an actuation button means disconnecting wires is simple. As the terminal block accepts conductors ranging in diameter from 26 to 12AWG (American Wire Gauge), it's a versatile choice.
You'll find terminal blocks like this one frequently used in telecommunications and energy supply equipment. They're also suited to petrochemical and railway applications.

• Front connections for ease of wiring in confined areas
• Includes an additional test connection for improved safety and efficiency
• ATEX certification for use in potentially explosive environments
• Meets DIN EN 50274 electrical safety standards for low-voltage switchgear to prevent electrical hazards and improve workplace safety

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
