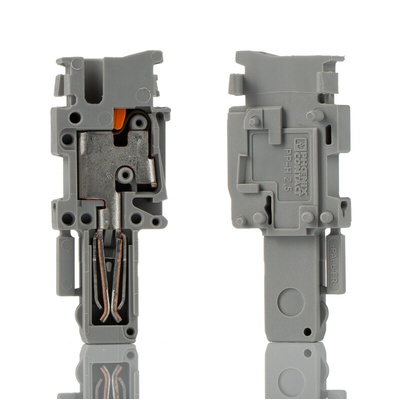

3210091, Phoenix Contact 5.2mm Pitch 1 Way Pluggable Terminal Block, Plug, Push In Termination

Phoenix Contact DIN Rail Terminal Block, Plug Type, 24A Current Rating - PP-H 2,5/1-M - 3210091

Looking for a way to quickly wire your rail-mounted industrial equipment? This Phoenix Contact terminal block plug attaches to the end of one conductor and is designed for use with pluggable terminal blocks in the PT series for convenient wiring. As it supports stranded conductors between 0.14 and 2.5mm² or up to 4mm² for solid wires, it's a versatile choice that's compatible with most common conductor sizes. The unit's 5.2mm pitch means it's suitable for making connections in crowded systems.
By standardising the size of your wires, the plug makes it easy to swap your connections for simple rewiring when needed. Its durable PA body provides effective shock resistance for your conductors, minimising the risk of damage from impacts. A low 0.77W power loss means the component gives you energy-efficient connections, while the open right-side panel lets you see the state of your wiring for ease of maintenance.

Features & Benefits

• UL94 V0 flammability rating indicates effective protection against fire
• Conforms to IEC 61984 standards to ensure reliable connections against jostling
• Sold in packs of 10 for convenient stocking
• Broad operating temperature range between -60°C and +105°C for use in tough conditions

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.

Plug, combi PP-H - 2,5/1-M
