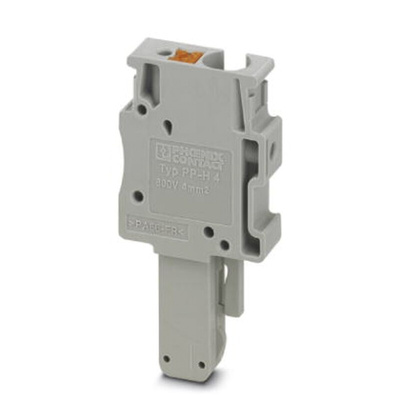

3210127, Phoenix Contact 1 Way Pluggable Terminal Block, Plug, Push In Termination

6879512
Номер производителя: 3210127Производитель: Phoenix Contact
Цена за шт. (норма упаковки 10 шт)
351.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Self-Assembly COMBI Plug Connectors with Push-In Connection

The COMBI plug connectors with PT Push-In technology with 24 A / 500 V can be used for signal as well as power wiring. The single poles can be assembled individually. The plug connector PP-H 2,5/... facilitates the use of the cable housings PH 2,5/2 to PH 2,5/15.

Toolless wiring of solid conductors and conductors with ferrule
50% less insertion force for direct plugging from 0.34 mm²
To be assembled on site individually and flexibly
With the standardized plug-in zone, they can also be connected to COMBI basic terminal blocks with other connection methods
Easy and individual coding options on every plug connector increase wiring safety and serve the protection against improper insertion
Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
Actuation button can be operated with any kind of screwdriver

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.

Техническая спецификация
pdfCOMBI, plug PP-H 2,5/1-R
Кол-во контактов:
1
Концевая заделка:
Push In
Номинал тока:
24A
Номинальное напряжение:
500 В
Размер провода:
26 → 12 AWG
Серия:
PP-H 2.5/1-R
Тип съемного клеммного блока:
Plug
Цвет:
Серый
