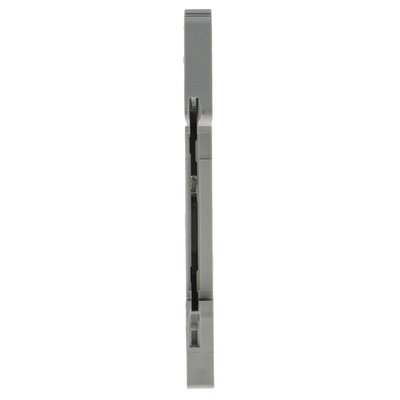

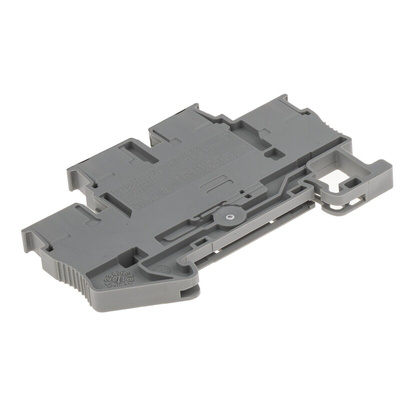

3210583, Phoenix Contact PTTB 2.5-PV Series Grey Double Level Terminal Block, 0.14 → 4mm², Double-Level, Push In

Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks

The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.

PT Series - Features and Benefits

• Can be bridged together easily with multi-conductor and function terminals
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply

Phoenix Contact Double-Level Terminal Block, 26 to 12AWG, 500V Voltage Rating - PTTB 2.5-PV - 3210583

Protect your electrical systems against short circuits and overcurrent with this double-level terminal block from Phoenix Contact. It's an insulated casing that secures, isolates and grounds wires to safeguard the other components in an electrical circuit. Use it for the optimal performance of your power, control and automation applications. It's also been tested as safe for railway operations, making it a versatile option.
The CLIPLINE complete feature simplifies the connection and bridging of different terminal blocks in one system without the use of tools. You can quickly and easily plug in solid and stranded conductors with ferrules of 0.34mm or more thanks to the terminal block's innovative push-in technology. A robust plastic housing insulates currents and prevents direct contact with open wires to promote safety. The unit weighs only 10.6g and has dimensions of 5.2 (W) x 68mm (H), making it compact and lightweight for effortless wiring and installation in tight spaces.

• ATEX hazardous-area certification for the safe use in explosive or flammable environments
• Grey colour coding for easy identification when used with other modules
• Tool-free wire termination thanks to the push-in mechanism

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
