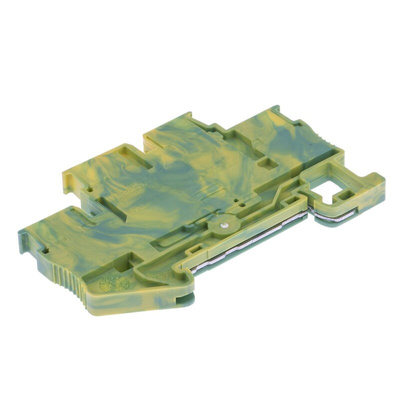

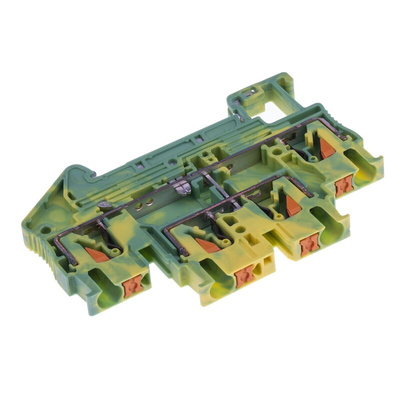

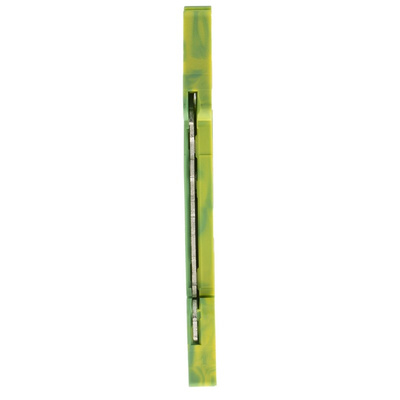

3210596, Phoenix Contact PTTB 2.5-PE Series Green/Yellow Double Level Terminal Block, 0.14 → 4mm², Double-Level, Push In

Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks

The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.

PT Series - Features and Benefits

• Can be bridged together easily with multi-conductor and function terminals
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply

Phoenix Contact Double-Level Terminal Block, 26 to 12AWG, Push-In Termination - PTTB 2.5-PE - 3210596

This double-level terminal block from Phoenix Contact is an ideal solution for use in setups where space is limited. It offers four connections arranged in two rows, allowing for more efficient packing in a crowded control circuit.
The durable unit is made from corrosion-resistant and impact-resistant polyamide (PA) for long-lasting performance in harsh environments. It has easy-to-use plug-in connectors, so wiring is quick and efficient, without the need for specialised tools. A front-end connection system makes the terminal block simple to wire in tight spaces for improved convenience.
This block offers dependable protection against short circuits and excess current in heavy-duty environments. You'll commonly find it used in environments such as the petrochemical and process industries, as well as in railway and machine-building applications.

• Additional test connection for improved safety and reliability
• Meets DIN EN 50274 safety standards for low-voltage switchgear for protection against direct contact with live parts
• Conforms to UL 94-V0 flammability standards, so it's self-extinguishing for safety in the event of a fire
• ATEX certification for use in potentially explosive environments

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
