3030161, Phoenix Contact FBS 2-5 Series Jumper Bar, 24A

6879792
Номер производителя: 3030161Производитель: Phoenix Contact
Цена за 1 упаковку (5 шт)
585.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Accessories for Push-In Connection Terminal Blocks

These accessories are for use with this range of Push-In Terminal Blocks.

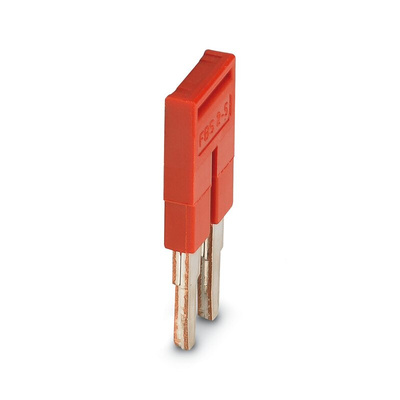

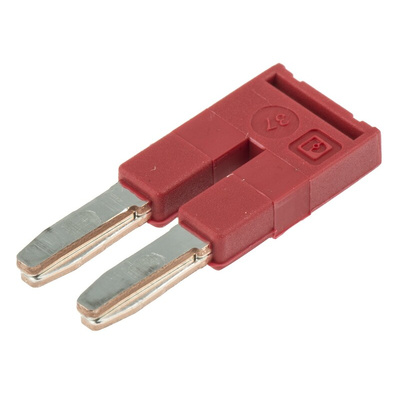

Phoenix Contact Jumper Bar, 5.2mm Pitch, 24A Maximum Current - FBS 2-5 - 3030161

Quickly build a bridge between two terminal blocks with this plug-in jumper bar from Phoenix Contact. It's a push-in device, so installation can be done in one simple step without the need for tools. A pitch of 5.2mm means it works with standard feed-through and modular terminal blocks. The unit takes a maximum load of 24A, so it has no trouble handling high-power connections.
The exposed end of the jumper is fitted with a polyamide cover to help insulate you from shocks and protect your connection. This also keeps the jumper strong and resistant to wear. The cover is red to make it stand out on complex panels. It means you can colour-code your connections when the jumper is used in combination with blue (804-0407) and grey (803-7530) bridges from the FBS range.
You'll find this nifty bar commonly used on marshalling panels, machine control systems and power distribution boards.

Features & Benefits

• Flame retardant material means burning stops in ten seconds to keep your circuits fire-safe
• Conductive copper prongs ensure your connections are reliable

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.

Техническая спецификация
pdfDatasheet 3030161
pdf3030161 Application Note
Количество путей:
10
Материал:
Медь
Номинал тока:
24A
Серия:
FBS 2-5
Тип аксессуара:
Jumper Bar
Тип монтажа:
Plug-In Mount
Цвет:
Красный
Шаг:
5.2мм
