RS PRO Brown Polyimide PI Rod, 250mm x 13mm Diameter, Стержень

TECASINT 2011 (Polyimide)

Providing high strength with a low level of creep and good wear resistance up to 300°C in continuous use. Suitable for thermally and mechanically stressed engineering elements and components.

Dimensional stability
Electrical insulation
High purity
Low outgassing
Inherently flame retardant
Good radiation
Easily machined to close tolerances

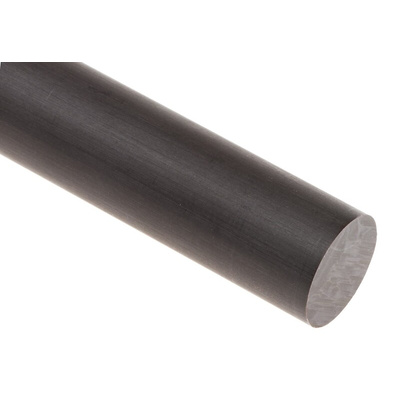

RS PRO Brown Polyimide PI Rod, 250 mm x 13 mm Diameter

Capable of bearing considerable thermal and mechanical strain, this brown polyimide PI rod is ideal for heavy-duty use in extreme conditions. Easily machined to close tolerances, it can be precisely configured to suit many purposes.

Thanks to its incredible durability, polyimide offers many advantages over other materials. Resistant to wear, radiation and heat, this rod can be used for extended periods in harsh and hot environments of up to +300°C. With inherent flame-retardance, it’s classified as UL 94 V-0, which means that it will stop burning after 10 seconds. The rod combines a Shore D hardness rating of 90, impact strength of 9.8kJ/m² and low creep for long-lasting toughness and rigidity.

Tested to ensure compliance with the exacting standards of our RS PRO range, this product is safe and reliable. It's well-suited for a wide variety of applications including friction rings, insulators and switch parts.

Features and Benefits

• Brown rod
• Made from polyimide (PI)
• Length of 250 mm
• Rod diameter of 13 mm
• Density of 1.38 g/cm³
• Impact strength of 9.8 kJ/m²
• Tensile strength of 118 MPa
• UL 94 V-0 flammability rating so burning stops within 10 seconds
• Maximum operating temperature of +300°C
• Elongation of 6.1%
• Shore D 90 hardness rating
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
