NSYTBP885, Schneider Electric Thalassa TBP Series Polycarbonate Wall Box, IP66, 89 mm x 89 mm x 54mm, Настенный шкаф

Thalassa PC plastic industrial casing, IP66

The Thalassa TBP series from Schneider Electric is a range of multi-purpose polycarbonate wall mounting enclosures with an electrical insulation class II. The enclosures have a rounded design which helps increase the boxes robustness.

Features and Benefits

• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of IK08 (joules 5) meaning the wall box is protected against a 1.7kg object dropped from 29.5 cm in height
• Usage temperature of -25° C to +80° C
• Halogen free
• Self-extinguishing provides you with the added safety regarding fire protection
• Various plugs in body shell for attaching accessories
• Multiple wall-mounting methods: directly by the holes on the base of the case, by channels outside the sealed area, by fixing wrap-over clamps

Typical Applications

The range of Thalassa TBP enclosures are suitable for the protection of small size components that require little intervention or maintenance.

Standards

EN 50102, IEC 60695-2-11, IEC 536, IEC 60529, IEC 62208

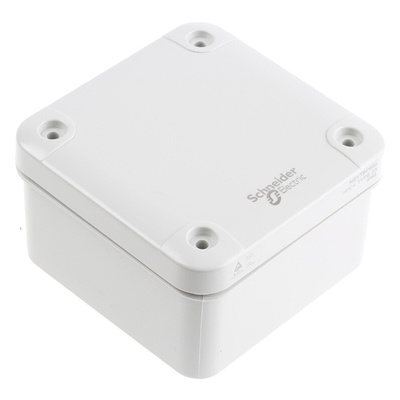

NSYTBP885 Thalassa TBP Multi-Purpose Industrial Polycarbonate Wall Box Enclosure.

• Thalassa TBP industrial box enclosure.


• Wall mounted.


• One-piece moulded body.


• Low plain front cover.


• Fixing with Metal screws.


• Locked by Outside sealed area - flat screwdriver captive screw.


• Cover and captive screws are removeable.


• Made from Grey RAL 7035 Polycarbonate.


• Insulation class II.


• IP66 conforming to NEMA 4.4X.


• IK08 conforming to IEC 62262.


• Fire resistant to 960°.

Internal Dimensions.

• Height 80mm, Width 80 mm, Depth 65 mm.

What is included?

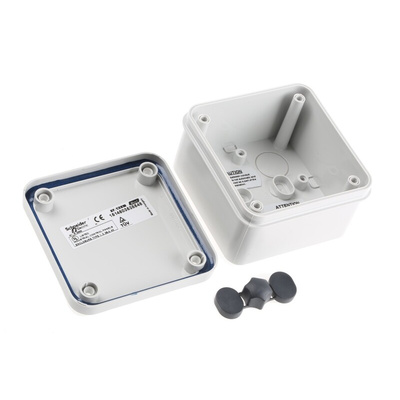

• 1 x Enclosure body, 1 x Enclosure Cover, 4 x Cover screws.

Standards.

IEC 62208, UL 508 A.

Certificate No.
type":"Certificate No.",

DEMKO, SEMKO, TÜV, UL.
