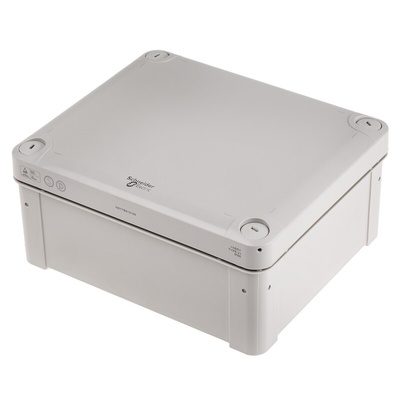

NSYTBS19168, Schneider Electric Thalassa TBS Series ABS Wall Box, IP66, 192 mm x 164 mm x 87mm, Настенный шкаф

Schneider Electric Thalassa TBS Enclosures

The Thalassa TBS series from Schneider Electric is a range of multifunction wall mounted, insulating, industrial enclosures that are easy to install using a flat screwdriver.
The ABS enclosures provide 3 wall-mounting methods: directly by the holes on the base, by channels outside the sealed area or by fixing wrap-over clamps.

Features and Benefits

• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of IK07 (joules 2) meaning the wall box is protected against a 500 g object dropped from 40 cm in height
• Mounting studs on the cover
• Cover locking by 4 plastic captive screws
• Adaptable hinges on the 20 mm and 40 mm covers
• Usage temperature of -25° C to +60° C
• Halogen free
• Self-extinguishing provides you with the added safety regarding fire protection
• Only 1 tool required, a flat screwdriver

Typical Applications

The range of Thalassa TBS enclosures are suitable for the protection of small size components that require little intervention or maintenance.

NSYTBS19168 Wall Mounting Enclosure

What are the external dimensions?

NSYTBS19168 has external dimensions of 192 x 164 x 87 mm.

What is supplied?

The NSYTBS19168 enclosure is supplied with a 1 body, 1 cover and 4 cover screws

Can the wall box be used outside?

The NSYTBS19168 has an Ingress Protection rating of IP66 so can be used inside or outside.

Standards

IEC 62208
