NSYTBS241910H, Schneider Electric Thalassa TBS Series ABS Wall Box, IP66, 241 mm x 194 mm x 107mm, Настенный шкаф

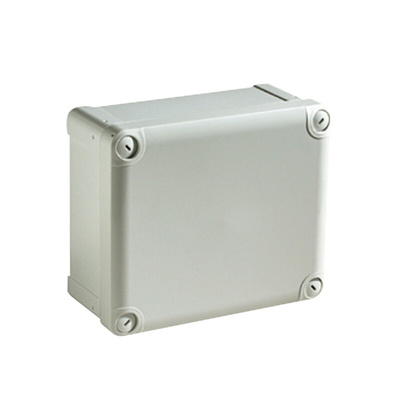

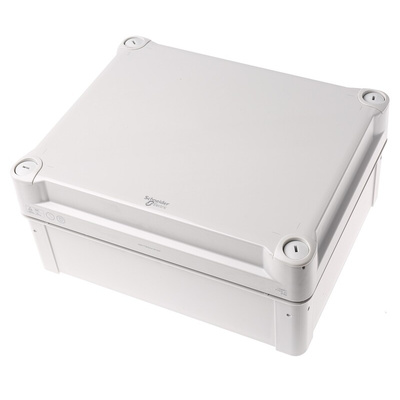

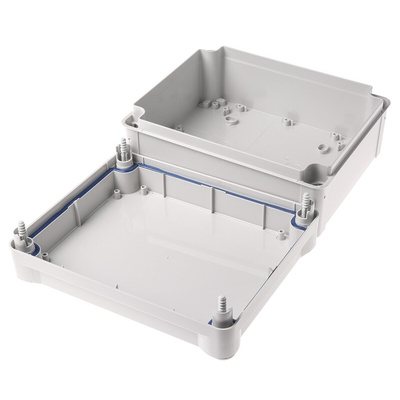

Schneider Electric ABS Wall Box, 241 (H) x 194 (W) x 107mm (D)- Thalassa TBS Series - NSYTBS241910H

Protect important and potentially hazardous items from unauthorised access with this multi-purpose wall box from Schneider Electric. It's made of acrylonitrile butadiene styrene (ABS), which is durable and impact-resistant, so it's safe for use in harsh conditions. The unit also serves as an insulator when it houses electrical components, protecting you from electric shocks. For extra security, this box comes with a protective cover that you can lock onto it with plastic captive screws.

Features & Benefits

• Ingress protection rating of IP66 indicates it can withstand dust and high-pressure water jets
• Wide operating temperature range of -25°C to +60°C for use in demanding settings
• Installation is easy with just a flat-headed screwdriver
• Three mounting options to suit your design needs – holes on base, channels outside sealed area and wrap-over clamps

Applications

• Plant equipment installation
• Domestic electrical wiring
• Marine industry

Is this wall box flame-resistant?

Yes, this wall box's ABS material is self-extinguishing. That means it stops burning in a short time when a fire occurs, helping reduce the spread of flames.

Standards

IEC 62208 which is the reference standard regarding empty enclosures for device assemblies for protection and manoeuvre to low voltage
