PL-USB-BLASTER-RCN, Altera USB Blaster, Cable Programming USB, Кабель для программирования

Altera USB Blaster

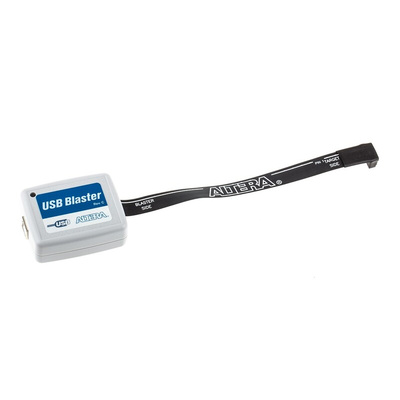

The Altera USB Blaster is a great FPGA programming device. This device links your PC to a 10-pin header connected to your FPGA and will allow you to send configuration data from your PC to the FPGA during prototyping or to program data into the system during production. The blaster is compatible with Windows and Linux machines. With the 10-pin being integrated into the device, it makes for effortless using.

The USB blaster contains 3 different types of programming modes, these include:
Joint Test Action Group (JTAG) – Programs and configures all Altera devices
Passive Serial – Configures all Altera devices supported by Quartus II.
Active Serial – Programs a single EPCS1, EPCS4, EPCS16 or EPCS128.

Supported Series:
•Stratix FPGAs
•Cyclone FPGAs
•MAX Series CPLDs
•Arria FPGAs
•Apex FPGAs
•Acex FPGAs
•Mercury FPGAs
•Flex 10K FPGAs
•Excalibur FPGAs

Altera’s USB blaster needs to be used from a PC with either; Windows XP, Vista, 7, 8 or 10. Linux is also an option with support for all Linux systems.

Replacement cable: See 1828831 (1 m) or 1828832 ( 2 m) (This product is supplied with a cable)

Supplied with

USB cable (A to B)

Programmable Logic Programming

USB-Blaster Download Cable User Guide(Apr 2009)

USB-Blaster Download Cable User Guide(May 2015)

PL-USB-BLASTER-RCN Datasheet
