704.925.0, EAO Modular Switch Flip Guard for Use with 14 Series, Чехол

Push Button Switches Series 14

The 14 series has been designed to offer premium quality with a wide range of options available. These include push buttons, indicators, various lens colours, covers and bezels.

Switches and Indicators supplied with raised bezel
Raised Mounting into 22.5 mm cut out
Flush mounting into 30.5 mm cut out
Illumination using T5.5 Lamps or LED’s
All standard lenses are transparent with translucent diffuser
Solder, plug-in or PCB connections
Operating temperature range: -25 to +55 °C

Note

To obtain IP 67 front end use Marking plate contained in lenses set see stock number 6906777. The status of a maintained action switch can be determined by the position of the lens.

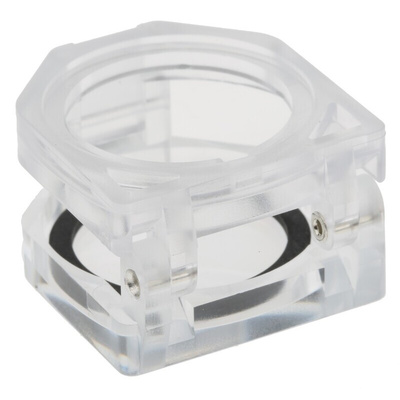

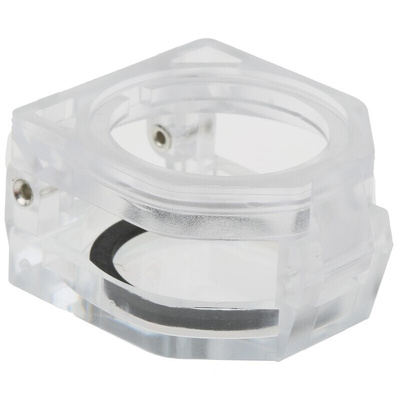

EAO Push Button Cover, For Use With 14 Series, 22.5mm Cut-Out Diameter - 704.925.0

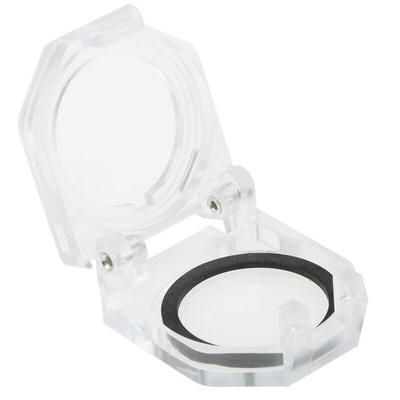

Need a reliable way to protect your push buttons against damage? Turn to this push button cover from EAO. It's designed to safeguard push buttons from the 14 series against impacts and contaminants in harsh industrial environments. For enhanced security, the cover is hinged and has a top panel that latches over the push button, helping to prevent accidental activation. The transparent casing allows you to easily see your switching component for greater ease of use. It has a small cutout diameter of 22.5mm to ensure it won't take up too much space on your panel.

Features & Benefits

• Plastic housing material is resistant to wear and corrosion for long-lasting performance in harsh environments
• Light weight of just 7g to avoid placing excess strain on your equipment

Applications

• Automated industrial processes
• Medical equipment
• Commercial and domestic appliances
• Aerospace applications

Can I use this cover in areas that need frequent cleaning?

Yes, thanks to its IP65 rating, this cover provides protection against dust and low-pressure water jets, making it suitable for use in areas that require light cleaning.
