71-671.026, EAO 71 Series Contact Block for Use with Push Button Switch, 250V ac, 1NO + 1NC, Элемент

Pushbutton Switches Series 71 (PCB mount)

The compact, oil & watertight switch is ideally suited for real world industrial applications. Benefits of the unique PCB assembly include decreased production costs, elimination of wiring errors, and reduction of bad solder joints.

Clutter-free back-of-panel PCB wiring
Easy printed circuit board mounting, without PCB connectors or standoffs.

Note

Switching element required for complete switch see stock no's 6906941 and 6906948

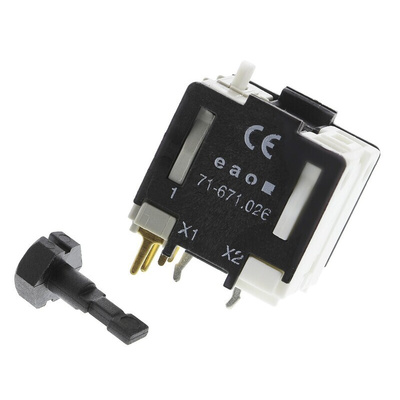

EAO Push Button Switching Element, NO/NC Contact Configuration, 3A Current Rating - 71 Series - 71-671.026

Need to assemble a modular push button to operate your equipment? Choose this contact block from EAO. Its snap-action switching mechanism means it responds instantly when actuated for enhanced efficiency. As its gold-plated silver alloy contacts are conductive and resistant to corrosion, you get reliable switching for your basic start/stop functions. The unit's voltage rating of 250V AC makes it suitable for use in low-power applications. For added versatility, the element joins to your switch with a removable locking pin, so you can easily swap actuator heads.

Features & Benefits

• IP65 rating when fully assembled for protection against dust and low-pressure water jets
• Self-cleaning contacts automatically remove contaminants to maintain switching performance
• Solders directly onto your PCB for easy and secure mounting
• Mechanical lifespan of over one million operations for long-lasting performance

Applications

• Domestic appliances
• Control panels
• Manufacturing industry
• Lighting systems

What material is this contact block made of?

This unit has a robust PETP housing that provides protection against wear and contaminants, so it can withstand use in demanding industrial settings.

Series 71 Data Sheet

Datasheet - 71-671.026
