84-5031.2B40, EAO 84 Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 22.5mm Cutout, SPDT, IP65

Series 84 Low Profile Emergency Stop Switch

The range of 84 was introduced to satisfy demands of both equipment builders and users. Typical usage covers the following areas: machinery and process control equipment, including production lines, cranes, robots, moving platforms, as well as security systems and emergency exists.
Within the many different colours, the lenses are available either in plastic or anodised aluminium.
To meet modern assembly standards, this range is connected to PCBs.
The Series 84 of Low Profile Emergency Stop Swathes are useful for small control panels. If space is at a premium, Series 84 can be easily used as they are portable and compactable. A yellow protection guard is available to stop accidental activation.
The Series 84 pushbuttons are suited to a range of industrial applications and guarantee reliable switching even of every light loads.
The range requires no additional assembly because of its ’monoblock’design.
The double-break switching system can be supplied for the following switching functions:
•1 NC, 2 NC, 1 NC + 1 NO

Electrical Characteristics

New standards in emergency-stop switches comply with EN IEC 60947-5-1, EN IEC 60947-5-5 (Emergency-stop), EN ISO13850, EN 60947-5-1.
The IEC stands for International Electrotechnical Commission) and is the world’s leading organisation for the preparation and publication of International standards for all electrical, electronic and related technologies.

Environmental conditions

Operating temperature
-25°C … +65°C
Storage temperature
-25°C … +80°C
The front protection is regulated by IP65, which is rated as ’’dust tight’’ and protected against water projected from a nozzle.
They are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc.) and moisture.
The numbers that follow IP each have a specific meaning and they represent the following:
•First Digit (intrusion protection)
•Second Digit (moisture protection)

Approvals

Approbations
UL (Underwriters Laboratories), is a world leader in product safety testing and certification
SEV (Swiss Designation)

Standards

DIN EN ISO 13850

Approvals

UL Recognised

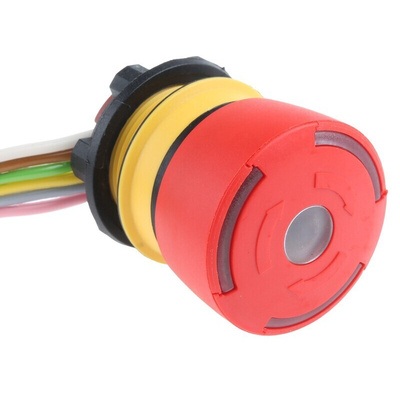

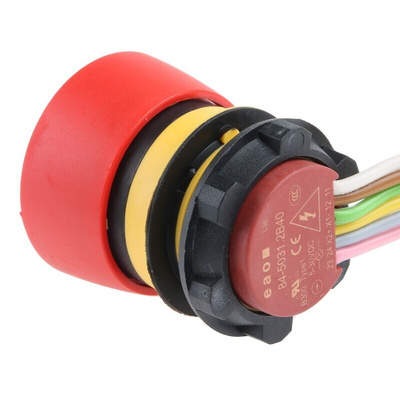

EAO Emergency Stop Push Button, 32mm Front Diameter, 5 to 30V DC Operating Voltage Range - 84 Series - 84-5031.2B40

Stop your machinery in a hazardous situation with this emergency stop push button from EAO. Its gold contacts are highly conductive and resistant to corrosion, helping to ensure reliable switching. To prevent accidental reactivation of your machinery, the button locks in place when pressed and requires a twist to release it. The device has an operating voltage range of 5 to 30V DC for use in low-power systems. A built-in red LED means the push button illuminates when pressed, so it's easy to spot in most lighting conditions.

Features & Benefits

• Plastic material is resistant to impact and wear
• IP65 rating means it's dust-tight and protected against low-pressure water jets
• Push button head has a mushroom shape for ease of activation
• Light weight of 36g to place minimal strain on your equipment

Applications

• Automated assembly lines
• Processing equipment
• Woodworking
• Manufacturing industry

What size panel cutout do I need to mount this emergency stop push button?

This push button uses a standard 22.5mm cutout, making it easy to integrate into your existing setup.

Series 84 Data Sheet

Datasheet

Brochure - Series 84 Emergency Stop Switches

Catalogue - 84 Series

Instruction Sheet - Emergency Stop Switch Series 84
