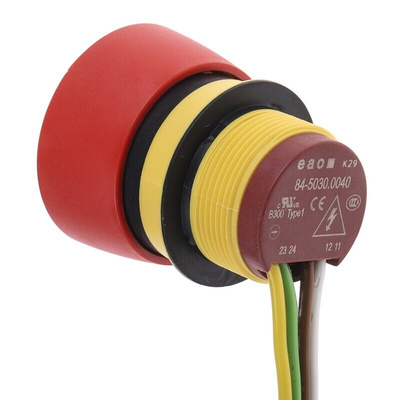

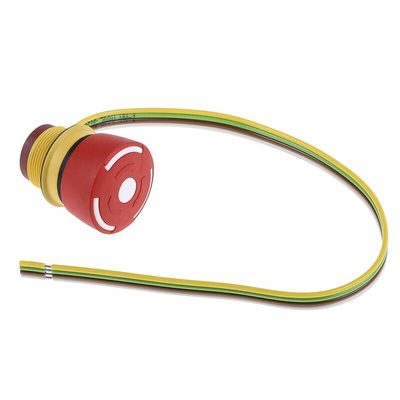

84-5030.0040, EAO 84 Series Twist Release Emergency Stop Push Button, Panel Mount, 22.5mm Cutout, SPDT, IP65

Series 84 Low Profile Emergency Stop Switch

The range of 84 was introduced to satisfy demands of both equipment builders and users. Typical usage covers the following areas: machinery and process control equipment, including production lines, cranes, robots, moving platforms, as well as security systems and emergency exists.
Within the many different colours, the lenses are available either in plastic or anodised aluminium.
To meet modern assembly standards, this range is connected to PCBs.
The Series 84 of Low Profile Emergency Stop Swathes are useful for small control panels. If space is at a premium, Series 84 can be easily used as they are portable and compactable. A yellow protection guard is available to stop accidental activation.
The Series 84 pushbuttons are suited to a range of industrial applications and guarantee reliable switching even of every light loads.
The range requires no additional assembly because of its ’monoblock’design.
The double-break switching system can be supplied for the following switching functions:
•1 NC, 2 NC, 1 NC + 1 NO

Electrical Characteristics

New standards in emergency-stop switches comply with EN IEC 60947-5-1, EN IEC 60947-5-5 (Emergency-stop), EN ISO13850, EN 60947-5-1.
The IEC stands for International Electrotechnical Commission) and is the world’s leading organisation for the preparation and publication of International standards for all electrical, electronic and related technologies.

Environmental conditions

Operating temperature
-25°C … +65°C
Storage temperature
-25°C … +80°C
The front protection is regulated by IP65, which is rated as ’’dust tight’’ and protected against water projected from a nozzle.
They are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc.) and moisture.
The numbers that follow IP each have a specific meaning and they represent the following:
•First Digit (intrusion protection)
•Second Digit (moisture protection)

Approvals

Approbations
UL (Underwriters Laboratories), is a world leader in product safety testing and certification
SEV (Swiss Designation)

Standards

DIN EN ISO 13850

Approvals

UL Recognised

EAO Emergency Stop Push Button, NO/NC Contact Configuration, 22.5mm Cutout Diameter - 84 Series - 84-5030.0040

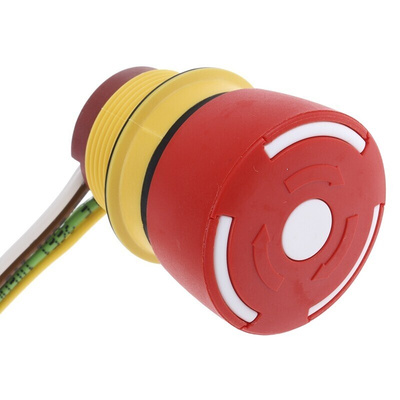

For the safe operation of your industrial machinery, use this emergency stop push button from EAO. It halts your equipment instantly to reduce the risk of accidents during operation, preventing harm to both personnel and hardware. The gold-plated silver alloy contacts are highly conductive and resistant to corrosion to ensure reliable switching. This push button has a twist-release mechanism that makes it simple to reset once operating conditions are safe.

Features & Benefits

• Bright red colour makes it easy to spot
• Long mechanical service life of at least 50,000 operating cycles for long-term performance
• Wide operating temperature range of -25°C to +65°C for use in challenging conditions
• PA housing for resistance to impact and wear
• IP65 rating means it's fully protected against dust and low-pressure water jets

Applications

• Oil and gas plants
• Mining industry
• Power transmission and distribution facilities

Is this push button flame-resistant?

Yes, this push button is flame-resistant and will stop burning in 10 seconds in the event of a fire. This makes it a good choice for use in harsh industrial environments.
