84-5041.2B40, EAO 84 Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 22.5mm Cutout, 2NC, IP65

Series 84 Low Profile Emergency Stop Switch

The range of 84 was introduced to satisfy demands of both equipment builders and users. Typical usage covers the following areas: machinery and process control equipment, including production lines, cranes, robots, moving platforms, as well as security systems and emergency exists.
Within the many different colours, the lenses are available either in plastic or anodised aluminium.
To meet modern assembly standards, this range is connected to PCBs.
The Series 84 of Low Profile Emergency Stop Swathes are useful for small control panels. If space is at a premium, Series 84 can be easily used as they are portable and compactable. A yellow protection guard is available to stop accidental activation.
The Series 84 pushbuttons are suited to a range of industrial applications and guarantee reliable switching even of every light loads.
The range requires no additional assembly because of its ’monoblock’design.
The double-break switching system can be supplied for the following switching functions:
•1 NC, 2 NC, 1 NC + 1 NO

Electrical Characteristics

New standards in emergency-stop switches comply with EN IEC 60947-5-1, EN IEC 60947-5-5 (Emergency-stop), EN ISO13850, EN 60947-5-1.
The IEC stands for International Electrotechnical Commission) and is the world’s leading organisation for the preparation and publication of International standards for all electrical, electronic and related technologies.

Environmental conditions

Operating temperature
-25°C … +65°C
Storage temperature
-25°C … +80°C
The front protection is regulated by IP65, which is rated as ’’dust tight’’ and protected against water projected from a nozzle.
They are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc.) and moisture.
The numbers that follow IP each have a specific meaning and they represent the following:
•First Digit (intrusion protection)
•Second Digit (moisture protection)

Approvals

Approbations
UL (Underwriters Laboratories), is a world leader in product safety testing and certification
SEV (Swiss Designation)

Standards

DIN EN ISO 13850

Approvals

UL Recognised

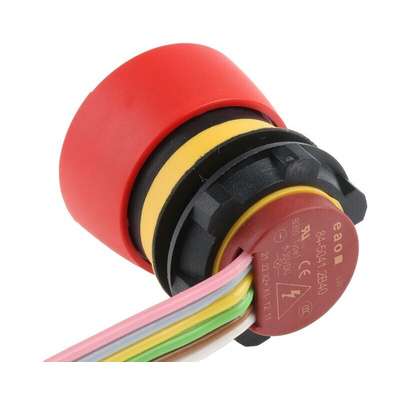

EAO Emergency Stop Push Button, 5 to 30V DC, 22.5mm Cut-Out Diameter - 84 Series - 84-5041.2B40

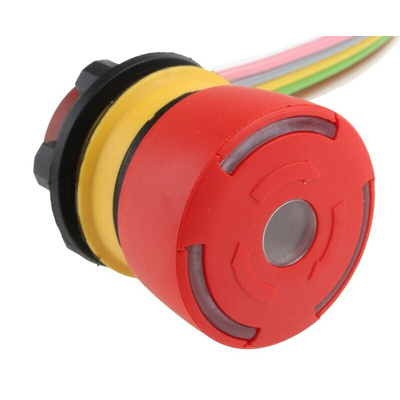

This emergency stop push button from EAO helps workers stop automated machines quickly in the event of a hazardous situation. As it's illuminated and has a bright red lens, it stands out clearly on panels, so it's easy to locate and press. The maintained switching action means that it stays activated once it's pressed, keeping equipment at a standstill until it's safe to restart it. The button must be twisted clockwise to unlock it, helping to prevent accidental reactivation of machines.

Features & Benefits

• IP65 rating means it's dust-tight and protected against low-pressure water jets
• Plastic button material is resistant to impact and wear
• Small cut-out diameter of 22.5mm to save space on a panel
• Low operating current of 9.7 to 12.4mA for energy-efficient operation
• Gold contacts are highly conductive and corrosion-resistant for an effective electrical connection

Applications

• Material handling equipment
• Robotics and automated machines
• Lifts and hoists

How long will this emergency stop push button last?

This emergency stop push button has a robust mechanical lifespan of 250,000 cycles, making it a long-lasting safety solution.

Datasheet
