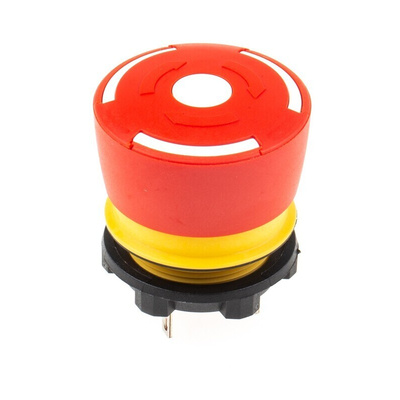

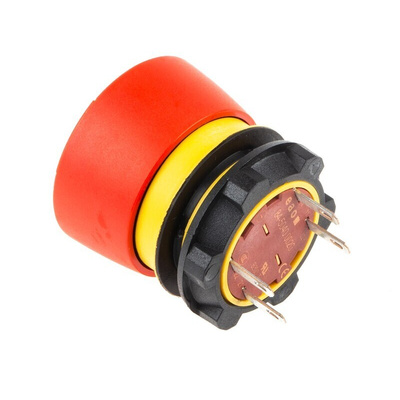

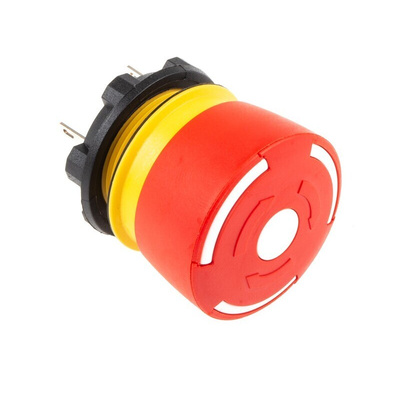

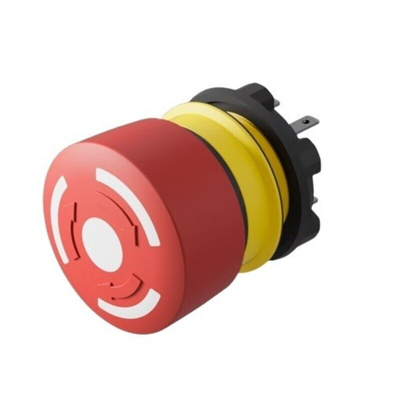

84-5040.0020, EAO 84 Series Twist Release Emergency Stop Push Button, Panel Mount, 22.5mm Cutout, 2NC, IP65

Series 84 Low Profile Emergency Stop Switch

The range of 84 was introduced to satisfy demands of both equipment builders and users. Typical usage covers the following areas: machinery and process control equipment, including production lines, cranes, robots, moving platforms, as well as security systems and emergency exists.
Within the many different colours, the lenses are available either in plastic or anodised aluminium.
To meet modern assembly standards, this range is connected to PCBs.
The Series 84 of Low Profile Emergency Stop Swathes are useful for small control panels. If space is at a premium, Series 84 can be easily used as they are portable and compactable. A yellow protection guard is available to stop accidental activation.
The Series 84 pushbuttons are suited to a range of industrial applications and guarantee reliable switching even of every light loads.
The range requires no additional assembly because of its ’monoblock’design.
The double-break switching system can be supplied for the following switching functions:
•1 NC, 2 NC, 1 NC + 1 NO

Electrical Characteristics

New standards in emergency-stop switches comply with EN IEC 60947-5-1, EN IEC 60947-5-5 (Emergency-stop), EN ISO13850, EN 60947-5-1.
The IEC stands for International Electrotechnical Commission) and is the world’s leading organisation for the preparation and publication of International standards for all electrical, electronic and related technologies.

Environmental conditions

Operating temperature
-25°C … +65°C
Storage temperature
-25°C … +80°C
The front protection is regulated by IP65, which is rated as ’’dust tight’’ and protected against water projected from a nozzle.
They are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc.) and moisture.
The numbers that follow IP each have a specific meaning and they represent the following:
•First Digit (intrusion protection)
•Second Digit (moisture protection)

Approvals

Approbations
UL (Underwriters Laboratories), is a world leader in product safety testing and certification
SEV (Swiss Designation)

Standards

DIN EN ISO 13850

Approvals

UL Recognised

EAO Emergency Stop Push Button, 2NC, IP65 - 84 Series - 84-5040.0020

To quickly shut off your machines in the event of an emergency, use this push button from EAO. It's a maintained switch, so it keeps your machinery off until you actuate the switch again for enhanced safety. Thanks to its IP65 rating, it's fully protected against dust and low-pressure water jets for safe use in harsh industrial environments. It features a plug terminal for a simple electrical connection, saving you time and effort during installation.

Features & Benefits

• Gold contacts are highly conductive and resistant to corrosion for a reliable electrical connection
• Plastic lens material is resistant to impact and wear for durability
• Light weight of 0.028kg to place minimal strain on your panel
• Mushroom-shaped head makes it easy to grasp for ease of actuation

Applications

• Transport systems
• Conveyor belts
• Machinery control panels

How much space does this push button take up on a panel?

This push button has a compact cutout diameter of 22.5mm and a front diameter of 32mm, so it will take up only minimal space on a busy panel.

Datasheet
