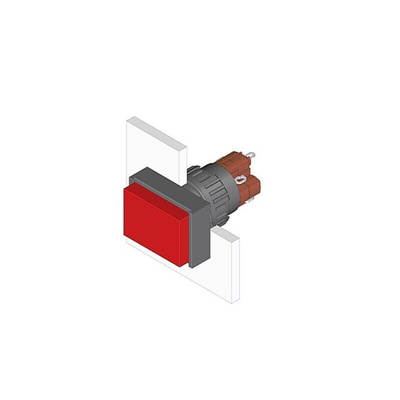

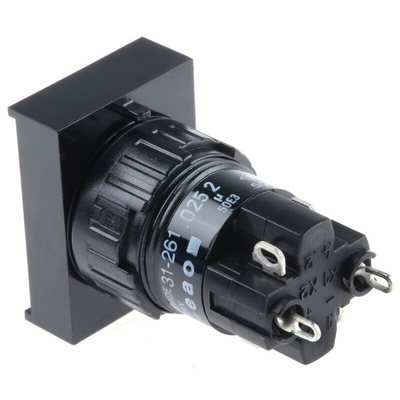

31-261.0252, EAO Illuminated Push Button Switch for Use with Series 31

EAO Illuminated Push Button Switch, 16mm Cutout Diameter, 18mm Length - 31 Series - 31-261.0252

Take charge of your equipment at the touch of a button with this EAO illuminated push button switch. Its snap-action switching element jumps into action as soon as you press it, making for speedy machine management. As it has a latching function, the device keeps your equipment on once it's activated, freeing up your hands for other tasks. The gold-plated silver contacts are highly conductive and resistant to corrosion for reliable switching. As it accommodates an LED light, this component is ready to stand out on busy control panels.

Features & Benefits

• Fits an industry-standard 16mm cutout diameter for ease of integration into an existing setup
• IP40 rating means it's finger-safe and protected against objects larger than 1mm in size
• Solder terminals for simple and secure electrical connections
• Maximum switching voltage of 250V AC for use in low-power systems

Applications

• Packing plants
• Food production
• Construction sites

How do I install this product on my panel?

You can mount this switch by inserting it through a cutout, then tightening it in place with the included fixing nut.

Series 31 Switches and Indicators Data Sheet

EAO - Series 31 - HMI Human Machine Interface Data Sheet

Catalogue - Series 31

Instruction Sheet - Series 01, 11, 14, 31, 51, 52

Datasheet - 31-261.0252
