66102A, Keysight Technologies Bench Power Supply, , 150W, 1 Output , , 20V, 7.5A, Блок питания

6909439
Номер производителя: 66102AПроизводитель: Keysight Technologies
Цена за шт.
684600.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

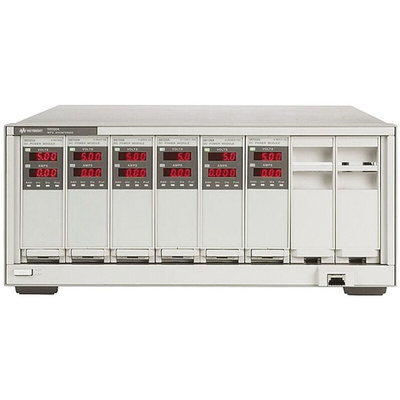

Modular Power System 1200 W per Mainframe GPIB

System comprises 66000A, 4U, 8-slot mainframe which accepts up to 8 power modules (ordered separately, typically 690-9436) in any combination. The 66001A detachable keyboard 690-9423 provides manual control of the system and is suitable for program development and troubleshooting. The 66002A rack mount kit 690-9427 enables the keyboard to be installed in a standard ATE rack. The system in use simplifies test-system assembly, cabling, programming, debugging and operation. For ATE and produvtion test environments, it can supply bias power and stimulus to sub-assemblies and final products.

Fast reconfigure with easily swappable modules
Fast, low-noise outputs
LIST mode and advance triggering system
Built-in measurements and advanced programmable features
Protection features to ensure DUT safety
Transient response time less than 1ms for output voltage to recover within 100mV of its previous level following any step change in load current up to 10% of rated current

Note

One 66000A mainframe can be connected with up to 8 of the Agilent series of system power supplies 6640 (typically 690-9506 ), 6650 (690-9524 ), 6670 (690-9543 ), 6680 (690-9556 ), 6690 (690-9574 ) or 6030 (690-9344 ). This solution provides power ranges from 150 → 5000W at one primary GPIB address.

Approvals

UL/IEC, CSA

Approvals

UL/IEC, CSA

Техническая спецификация
pdfHigh Performance DC Power Supplies Modular Power System Data Sheet
Входной разъем:
Wire Clamp
Выходной разъем:
Винтовой зажим
Выходной ток:
7.5A
Количество выходов:
1
Максимальная температура:
+55°C
Минимальная температура:
0°C
Мощность номинальная:
150Вт
Напряжение выходное:
20В
Напряжение питания:
120 В перем. тока, 230 В перем. тока
Тип:
Цифровой
