N3306A, Keysight Technologies N3300 Series Electronic Load, 0 → 600 W, 6 → 60 V, 12 → 120 A, Электронная нагрузка

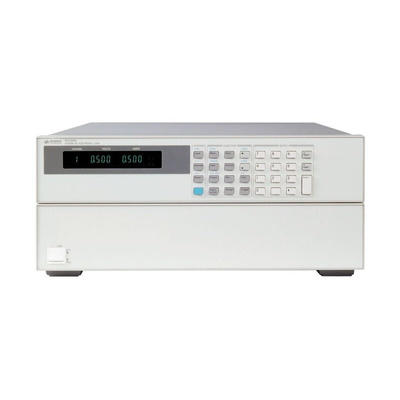

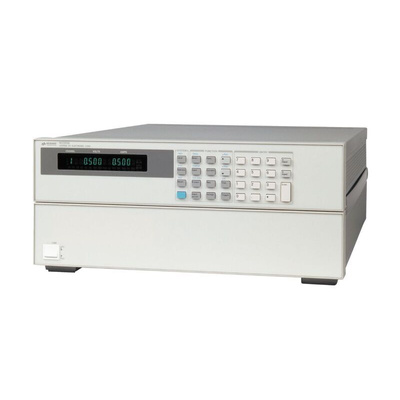

Keysight Technologies Electronic Load, 0 to 600W Power Output Range, 2 Mainframe Slots - N3300 Series - N3306A

Put your power supply to the test with this electronic load from Keysight Technologies. It outputs power between 0 and 600W, switching from small to large loads in a flash for effective testing. By taking up to 1,000 measuring samples per cycle, the module takes a close look at your circuit to provide precise electrical readings. Installing the device is as easy as plugging it into a mainframe (690-9590), so you can speed through set-up.

Features & Benefits

• Ripple and noise of 8mVp-p keeps electrical noise down for increased reliability
• Reacts to commands in just 3ms to minimise downtime

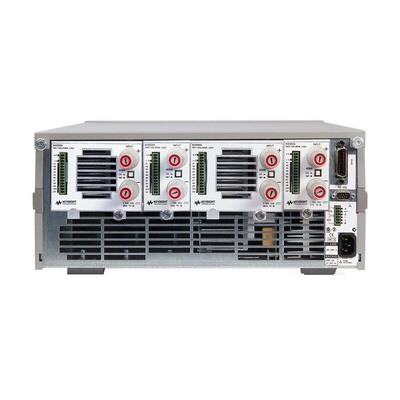

• Partners with other load modules to generate power up to 1600W for use in heavy-duty applications
• Internal transient generator makes it a breeze to test surge protection

Applications

• Laboratory testing
• Battery manufacturing
• Aerospace engineering

How do I adjust the output on this electronic load?

You can change this unit's output using the mainframe's front-mounted interface. You can also adjust the output remotely by linking the module to a control device via an RS-232 or GPIB connection.

Note

Comes with with manually tightened connectors

Agilent dc Electronic Loads Models N3300A-N3307A Technical Specifications

Datasheet - N3306A

Catalogue - Distribution Products Catalog
