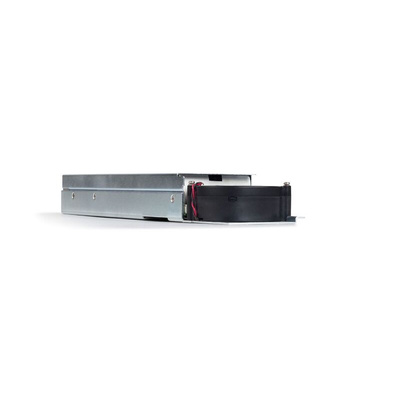

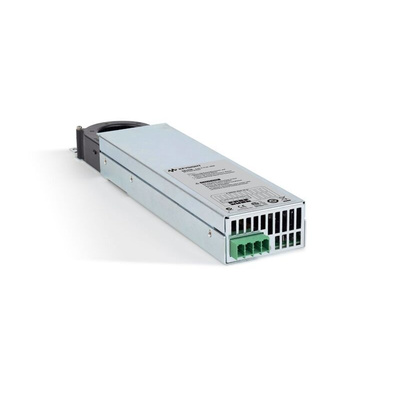

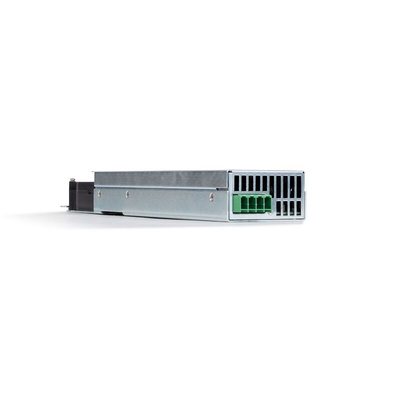

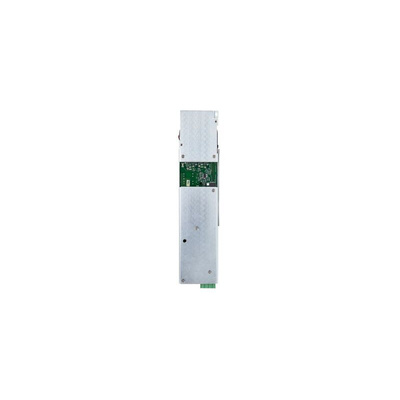

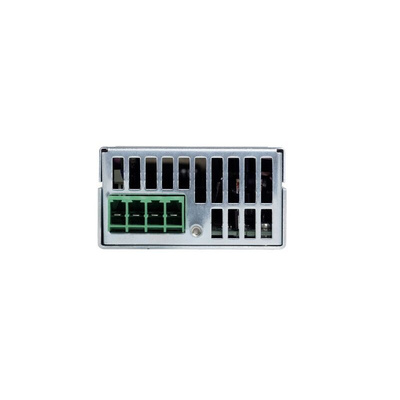

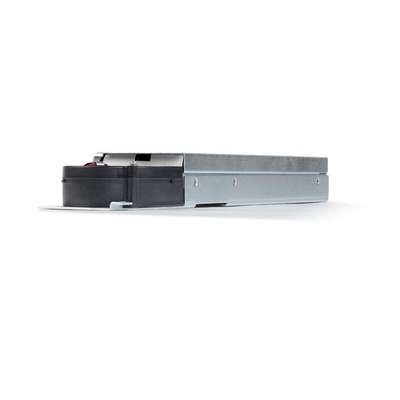

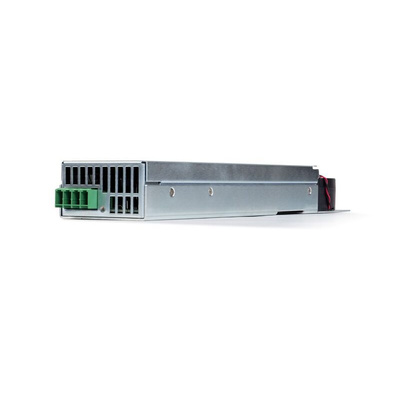

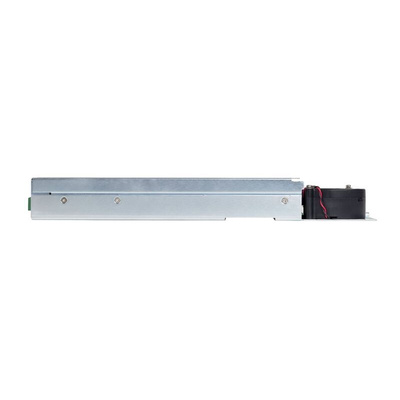

N6742B, Keysight Technologies N6700 Series Power Module, 8V, 12.5A, 1-Output, 100W, Блок питания

N6700 Low-Profile Modular Power System

N6730, N6740 and N6770 series DC power modules provide programmable voltage and current, measurement and protection features economically, making them suitable to power the DUT or to provide power for ATE system resources such as fixture control. N6750 high-performance autoranging DC power modules provide low noise, high accuracy and programming speeds up to 50 times faster than other programmable power supplies. The high-speed test extensions included offer an oscilloscope-like digitizer which simplifies system configuration and increases measurement accuracy when viewing high-speed transient or pulse events within the DUT.

The autoranging capabilities enable one power supply to do the work of several traditional power supplies. N6760 series DC power modules provide precise control and measurements in the milliampere and microampere region with the ability to simultaneously digitize voltage and current, and to capture those measurements in an oscilloscope-like data buffer.

• Fully compliant to LXI Class C specification
• Creates a system of up to 4 outputs of up to 300W per output in 1U of rack space
• Output voltage can be changed in as few as 200 microseconds
• Hardware and software triggering enables synchronization to other events in ATE system
• Transients captured with built-in digitizer (up to 50kHz, 4096 points)
• Generates automated sequencing of up to 512 output settings
• Ensures DUT safety with protection features

Note

The N6700 series DC power modules each occupy a single module slot in the mainframe with the exceptions of N6753A 690-9694 and N6754A 690-9697 , which each occupy two module slots in the mainframe.

Keysight Technologies Bench Power Supply, 8V DC Output Voltage, 4mV Voltage Measurement Resolution - N6700 Series - N6742B

Get your automated test hardware firing on all cylinders with this bench power supply from Keysight Technologies. By providing adjustable power, voltage and current outputs, it packs in plenty of flexibility for effective device testing. A voltage setting accuracy of 0.1% + 19mV means the unit sends out precise power for efficient performance. There's no need to worry about long preparation times, as the module boots up in just 32ms. As the supply comes with overvoltage protection, it shuts down the risk of component damage from powerful spikes.

Features & Benefits

• Typical ripple and noise of 12mVp-p to minimise disruption from power line noise
• Slots into a mainframe (136-5428) for easy mounting
• Measures up to 1,024 data points per cycle for up-to-date readings

Applications

• Semiconductor manufacturing
• Power plants
• Automotive repair

Can I use this bench power supply with other power modules?

Yes, this unit works with other 100W power modules in series and parallel arrangements, making it easy to run separate and combined power circuits for versatile testing.
