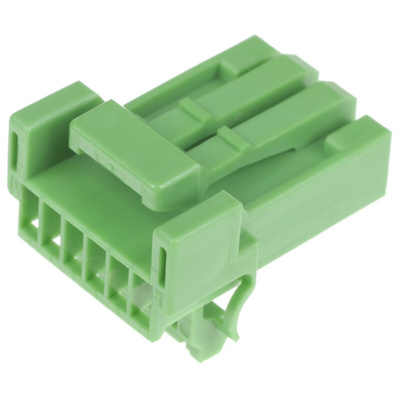

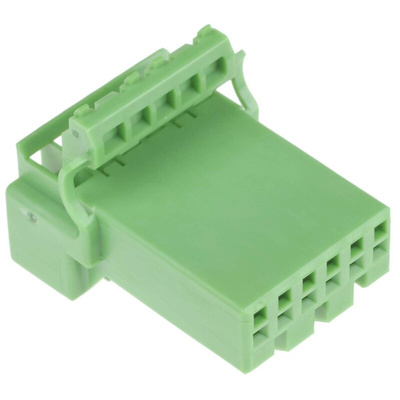

IL-AG5-6S-S3C1, JAE, IL-AG5 Automotive Connector Socket 6 Way

Socket Housing 1 and 2 Row Standard socket contact

Note

For suitable headers see 690-9789 and typically 690-9754 and range, for socket contact see 690-9887

JAE IL-AG5 Series Automotive Connectors

Designed for automotive instrument panel applications
Mechanical lock assures positive mating
Unique housing configuration helps prevent mismating
Double lock mechanism prevents dislodging of contacts
A polarized version is available (for single row, 5 and 6 contacts only)
High reliable socket contacts
Simplified crimp-type termination

Datasheet
