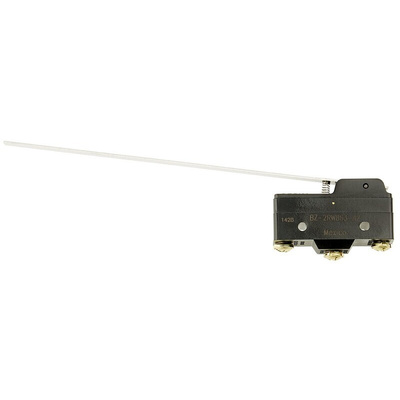

BZ-2RW863-A2, Honeywell BZ Series Lever Limit Switch, SPDT, Plastic Housing, 125V ac Max, 15A Max

BZ Series Switches

The BZ series of switches feature a long mechanical life of up to 20,000,000 cycles at 95% survival and also have a choice of actuation, termination and operating characteristics.

Low operating force and differential travel
Elongated mounting hole for easier, more accurate mounting
Current rating ranges from 15 A to 25 A
Typical applications include: irrigation systems, timing devices, test instruments and medical/dental equipment

Honeywell Snap-Action Straight Lever Limit Switch, 15A, -55°C to +85°C - BZ Series - BZ-2RW863-A2

Control the movement of objects in your machinery with this limit switch from Honeywell. Its SPDT (single pole double throw) design lets the switch control two separate circuits at once for enhanced efficiency. The switch features a lever that uses a spring mechanism to automatically return to its original position once a detected object is removed for ease of use. Thanks to its snap-action design, this switch reacts quickly for a rapid switching response in sensitive applications.

Features & Benefits

• Long lever length of 152.4mm for detection of objects from a distance
• Current rating of 15A for use in heavy-duty applications
• Broad operating temperature range between -55°C and +85°C for use in demanding conditions
• Compact dimensions of 49.3 (length) x 17.5 (width) x 24.1mm (height) to minimise bulk in your setup

Applications

• Elevator and conveyor control
• Automated assembly lines
• Machinery safety systems

How long will this limit switch last?

This limit switch has a robust mechanical lifespan of up to 20 million cycles, so it will last a long time without the need for frequent replacement.

Basic Switches BZ/BA Series Data Sheet
