Keysight Technologies U2741A Bench None Multimeter, True RMS, 2A ac Max, 2A dc Max, 250V ac Max, Мультиметр

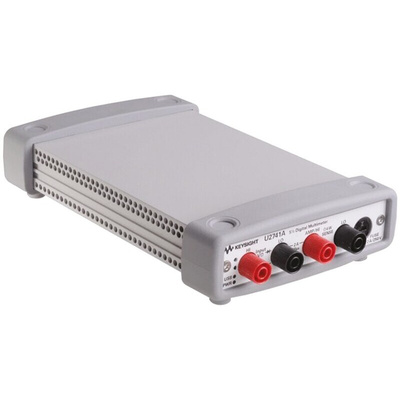

U2741A USB Modular Digital Multimeter

The Keysight U2741A is a PC based digital multimeter with a resolution of a 5.5 digits. It's part of the Keysights modular USB family, and can be used as a single USB instrument or as part of a test system within the Keysight six slot chassis.

Features and Benefits

Make fast measurements with up to 100 readings/s
Vdc, Vac, Aac & Adc measurements
Continuity, diode test, temperature and frequency measurements
High-speed USB 2.0, USBTMC-USB488 standard (compatible with Microsoft® Windows® operating systems)
Standalone and modular capabilities.
Compatible with Agilent VEE toolkit, Microsoft® Visual Studio®.NET, C/ C++ and Visual Basic® 6, MATLAB®, LabVIEW® & Microsoft.NET Framework
Dimensions & weight: 117 x 180 x 41 mm: 509g

Key Features

Fast measurements up 100 readings and Hi-Speed USB 2.0 plug and play simplicity.
Flexible operating of Digital Multimeter, whether it be standalone or modular.
Wide voltage measurements range of up to 300 V dc with 5.5 digit resolution.
Compact size you can carry this powerful test gear in your bag along with your laptop.

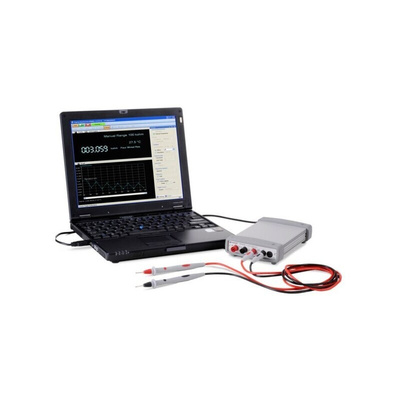

Control, automate and simplify measurements with BenchVue.

Note

Other Agilent USB modular products:
U2701A oscilloscope see stock no. 686-2087
U2702A oscilloscope see stock no. 686-2081
U2761A function generator see stock no. 686-2090
U2722A source measure unit see stock no. 686-2093
U2751A switch matrix see stock no. 686-2097
U2781A modular products chassis see stock no. 686-2075

Supplied with

Test lead set, 12V power adaptor, USB lead, L mount kit, reference guide & IO libraries suite on CD-ROM, Agilent Measurement Manager Software

Keysight Technologies Multimeter, 5.5 Digit Resolution, USB 2.0 Connectivity - U2700A Series - U2741A

Put your electronic components through their paces with this digital multimeter from Keysight Technologies. By giving you access to voltage, current, resistance, frequency and temperature measuring functions, it's a go-to device for many testing and maintenance tasks. Taking precise voltage measurements is no trouble with this tool, as its deadeye accuracy of ±0.018% with an offset of 0.005% of your range keeps a close eye on small changes. The product's 5.5-digit resolution helps your numbers fall into place to produce detailed data. As the unit achieves up to 100 readings a second, you can trust you'll never miss a thing in your tests.

Features & Benefits

• Broad temperature measuring range between -80°C and +150°C for use in demanding test conditions
• Integrated USB 2.0 connectivity for ease of data transfer

Applications

• Electronics manufacturing
• Automotive repair
• Laboratory testing

Do I need to download any software to use this multimeter?

No, this device comes with a CD that's loaded with all the management tools you'll need, cutting out the hassle of downloading extra software.
