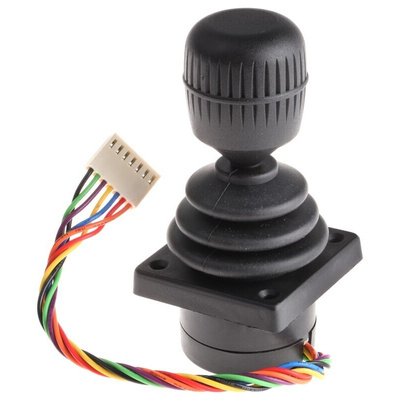

APEM Contactless Joystick Switch
The APEM 3 way contactless joystick has an operating life of 5000000 cycles and contacts an electrical current rating of 40mA and voltage rating of 5V. It has 3-axes format, which covers X, Y and Z axes and each provides one proportional output. The stick controls the X and Y axis while the handle incorporates the Z-axis. Long trouble-free life is assured with the latest Hall effect technology, providing a range of analogue signals or custom PWM output options. This joystick is designed for performance, strength and robustness. A square limiter has been fitted, giving the full movement of the stick. This unit is fitted with a 7-way connector.
Features and Benefits
Terminal type is through-hole
Operating temperature ranges between -25℃ and 70℃
Pre-wired with cables and connectors
Shallow installed depth, 20mm below the panel
Hall effect sensing
EMC shielded
Certifications
IP65 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007ss
