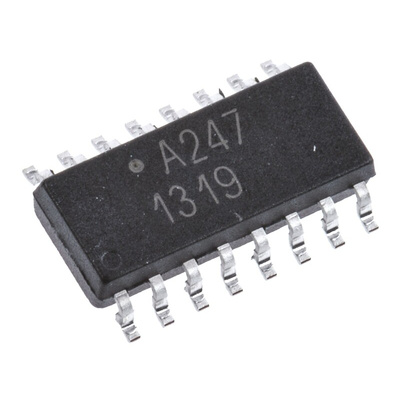

Broadcom, ACPL-247-500E DC Input Transistor Output Quad Optocoupler, Surface Mount, 16-Pin SOIC

Optocoupler, Transistor Output, Avago Technologies

The DC input single and multi-channel phototransistor optocouplers are used for power sequence controller and Input/Output interface applications.

The Broadcom ACPL-247 is a DC-input quad-channel half-pitch phototransistor optocoupler that contains four light-emitting diodes optically coupled to four separate phototransistors. It is packaged in a 16-pin SO package.

Current transfer ratio (CTR: 50% (min) at IF = 5 mA, VCE = 5V)
High input-output isolation voltage (VISO = 3750VRMS)
Non-saturated response time (tr: 2 μs (typ) at VCC = 10V, IC = 2 mA, RL= 100)
SO package
CMR 10 kV/μs (typical)

Optocouplers, Avago Technologies

ACPL-227/ACPL-247 Datasheet
